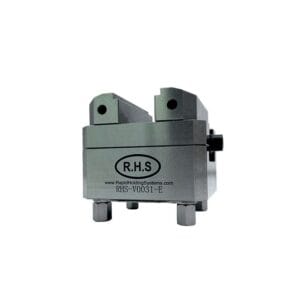

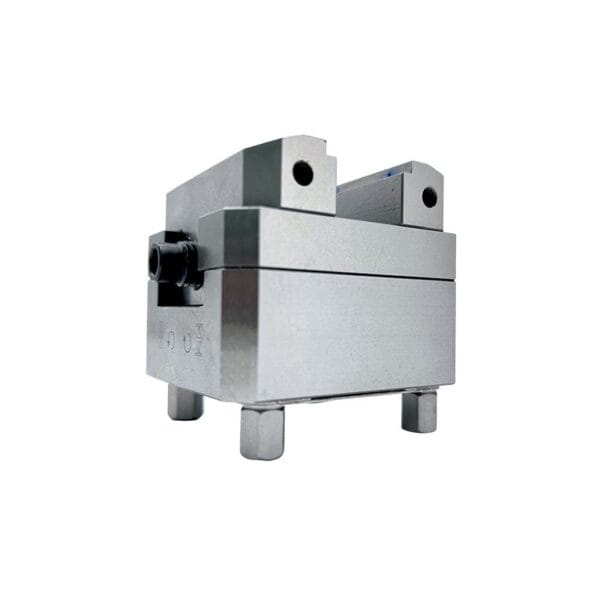

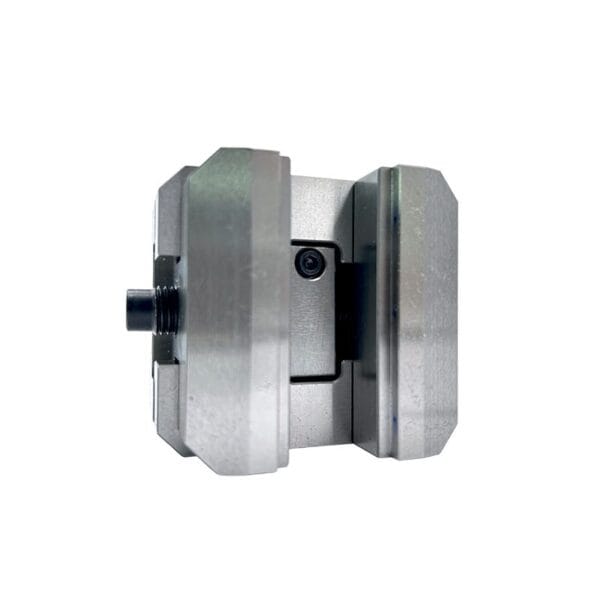

Mini Self centering vise 60X54mm on Erowa plates
$825.00
Self-centering vise 60X54mm. RHS mini self-centering vise is 31mm clamping mounts directly on Erowa parts. Special holder to clamping small weight workpiece. Use a regular handle to threading the side screw to lock the workpiece and centering on the holder. Comes premounted on Erowa equivalent plate
- Description
- Additional information
- Reviews (0)
Description
Self-centering vise 60X54mm. RHS mini self-centering vise is 31mm clamping mounts directly on Erowa parts. Special holder to clamping small weight workpiece. Use a regular handle to threading the side screw to lock the workpiece and centering on the holder. Comes premounted on Erowa equivalent plate.

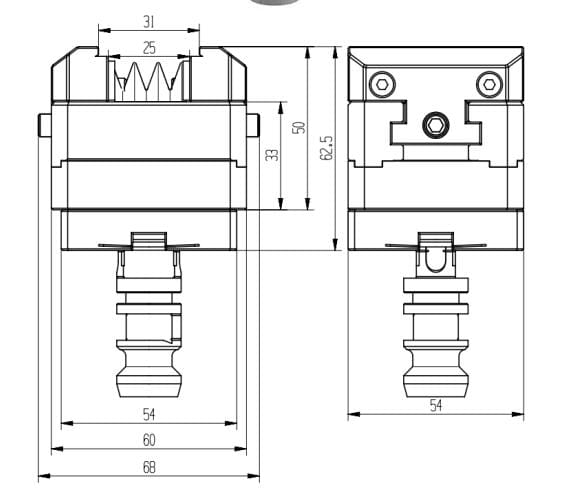

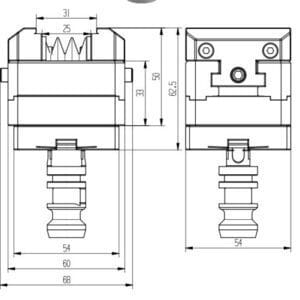

| SPECIFICATIONS | |
| Size | 60X54X52mm |
| Repeatability | within 0.005 |
| Material | 420 48`52 HRC |
| Max Clamping | 31mm |
| Force | 1000N |
| Weight | 1kg |
*Erowa chuck not Included.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 16 × 12 × 8 cm |
| Clamping Range for Vises | |
| Material for Vises | Stainless Steel |
| Compatibility for vises | EROWA Compatible, Zero-Point Bolts |
