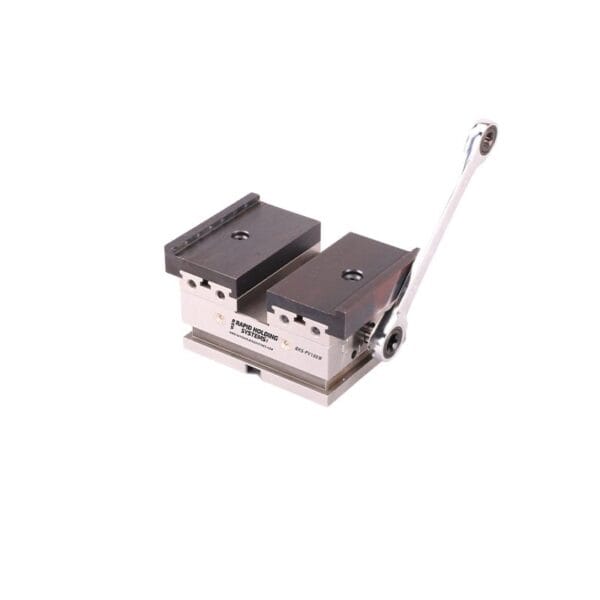

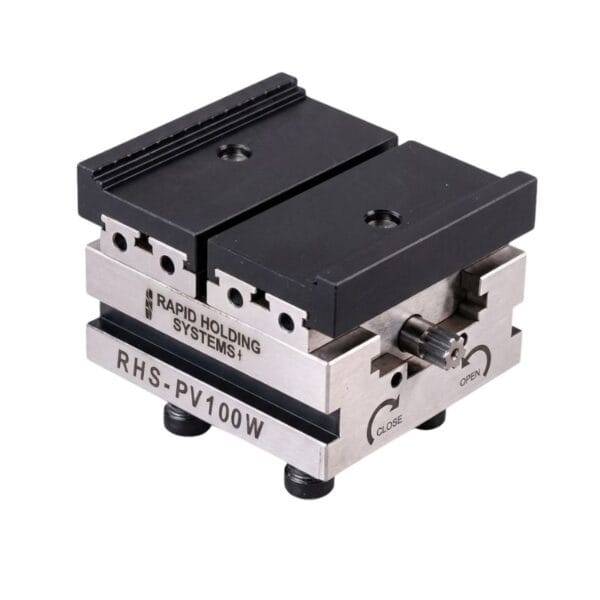

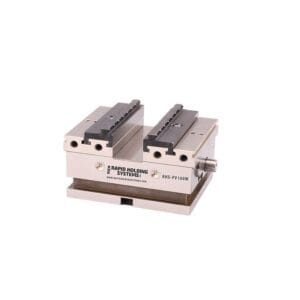

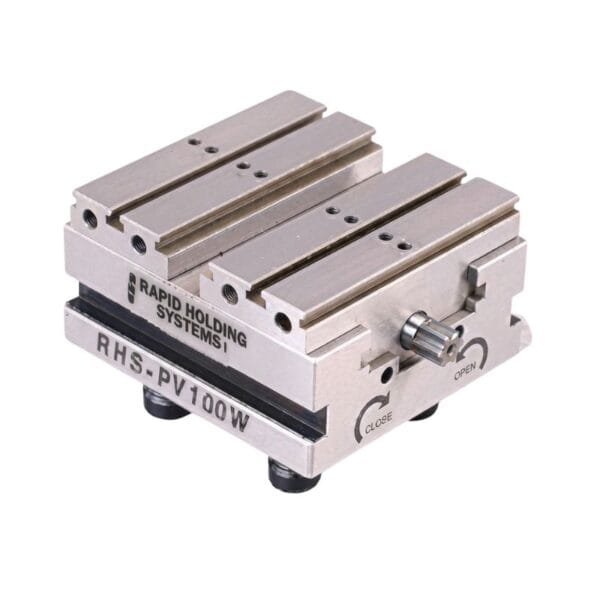

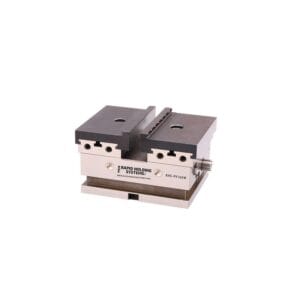

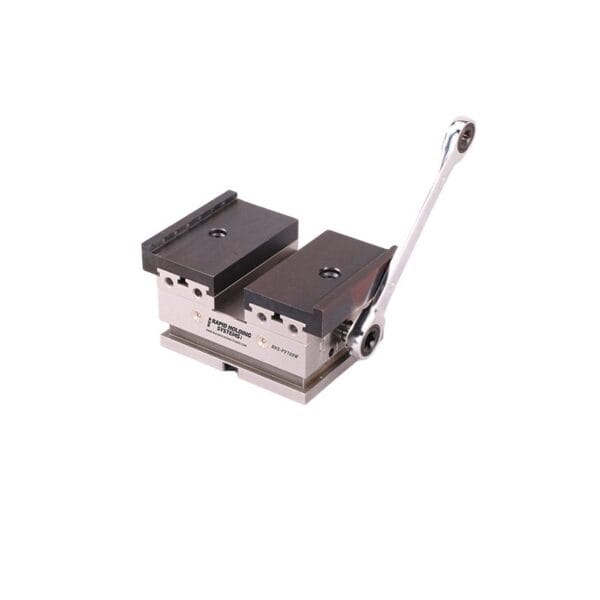

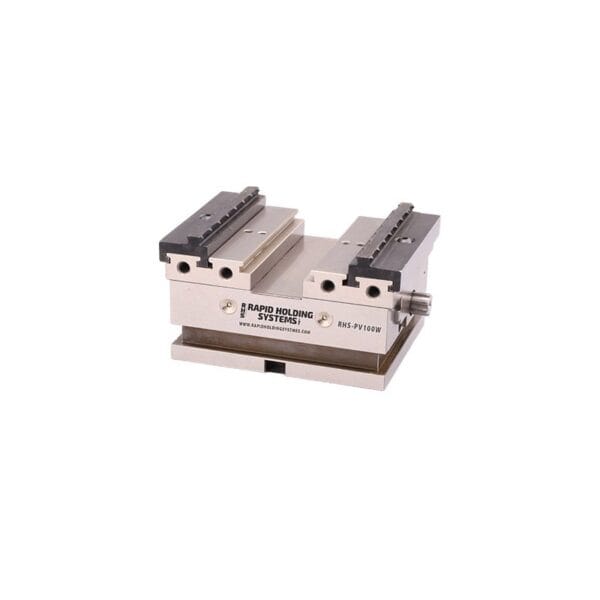

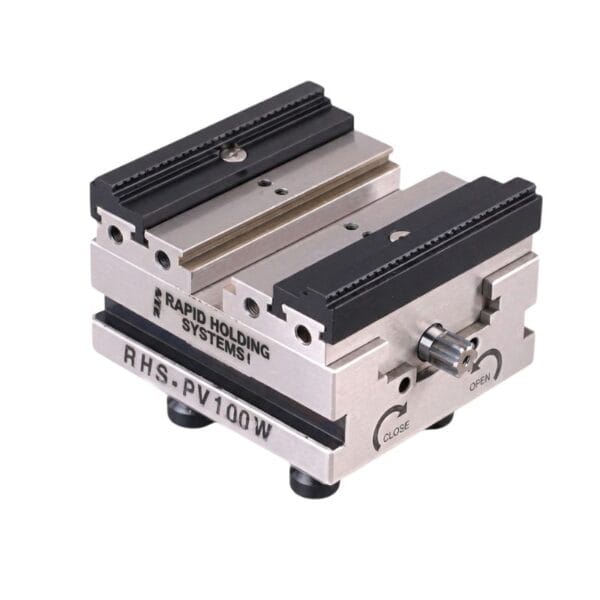

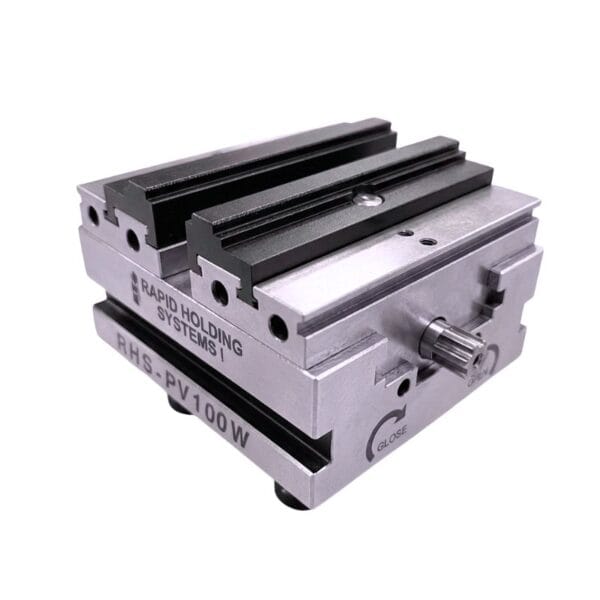

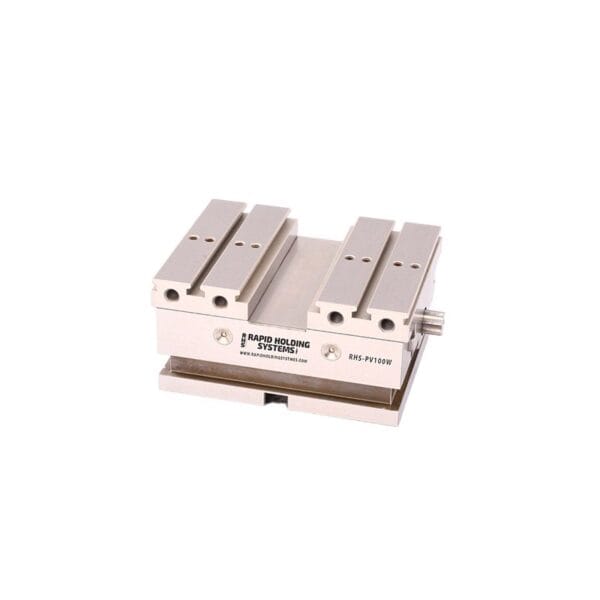

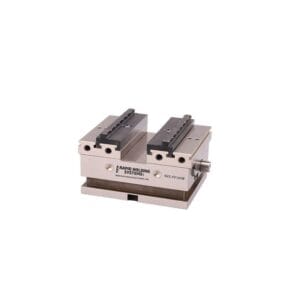

Self-centering Vise 100X90 (INOX)
Original price was: $1,850.00.$1,625.00Current price is: $1,625.00.
- Quickly change the direction of the jaws and rotate 180 to increase the clamping range.
- Dust protective cover is included.
- Clamping repeating accuracy within 0.005mm.
- Compatible with EROWA & System-3R.
- Standard large and small jaw sets provided
- Description
- Additional information
- Reviews (0)
Description
-Size 100X90, Height 51.5mm
-Achieve variable clamping range with different jaws.
-Quickly change the direction of the jaws and rotate 180 to increase the clamping range.
-Dust protective cover is included.
-Clamping repeating accuracy within 0.005mm.
-Compatible with EROWA & System-3R.
-Standard large and small jaw sets provided
| Specifications | |
| Series | 64850-100W |
| Model | RHS-PV100W |
| Body Length (mm) | 100 |
| Clamping range (mm) | 0 to 105 |
| Jaw width (mm) | 90 |
| Tightening Torque (Nm) | 70 |
| Weight (kg) | 3 |

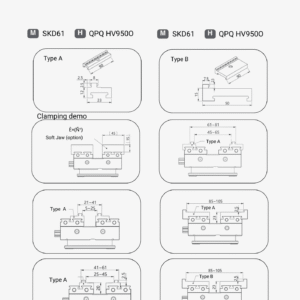

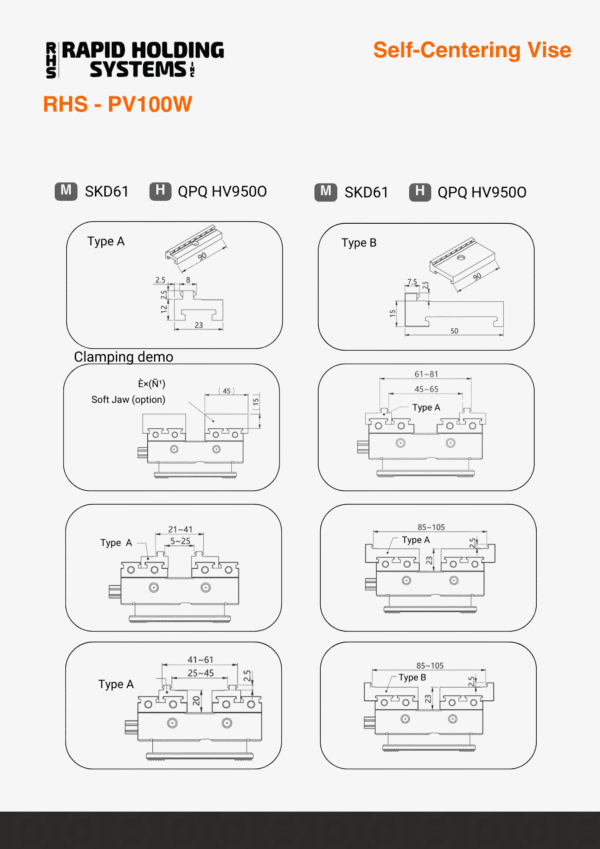

| Includes | Type A and Type B jaw sets |
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 15 × 12 × 10 cm |
| Material for Vises | Stainless Steel |
| Compatibility for vises | Universal, Zero-Point Bolts |
