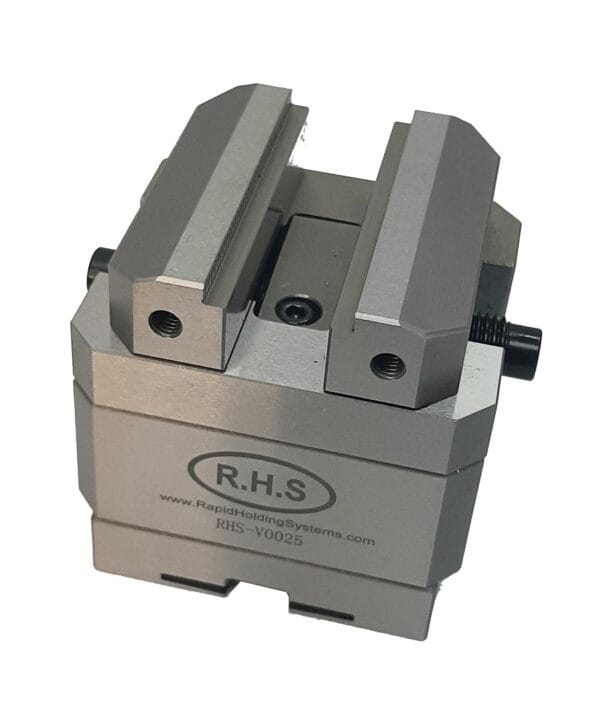

Mini Self centering vise System 3R 60X54mm-25mm clamping
$810.00
Self-centering vise 60X54mm on System 3R 54 or 70mm macro pallet. RHS mini self-centering vise is 25mm clamping mounts directly on System 3R parts. Special holder to clamping small weight workpiece. Use a regular handle to threading the side screw to lock the workpiece and centering on the holder.
| SPECIFICATIONS | |
| Size | 60X54X52mm |
| Repeatability | within 0.005 |
| Material | High grade steel 48-52HRC |
| Max Clamping | 25mm |
| Torque | 20NM |
| Weight | 1kg |
- Description
- Additional information
- Reviews (0)
Description
Self-centering vise 60X54mm on System 3R 70mm or 54mm pallets. RHS mini self-centering vise is 25mm clamping mounts directly on System 3R parts. Special holder to clamping small weight workpiece. Use a regular handle to threading the side screw to lock the workpiece and centering on the holder.
| SPECIFICATIONS | |
| Size | 60X54X52mm |
| Repeatability | within 0.005 |
| Material | High grade steel 48-52HRC |
| Max Clamping | 25mm |
| Torque | 20NM |
| Weight | 1kg |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 8 × 8 cm |
| Clamping Range for Vises | |
| Material for Vises | Stainless Steel |
| Compatibility for vises | System-3R Compatible, Zero-Point Bolts |
