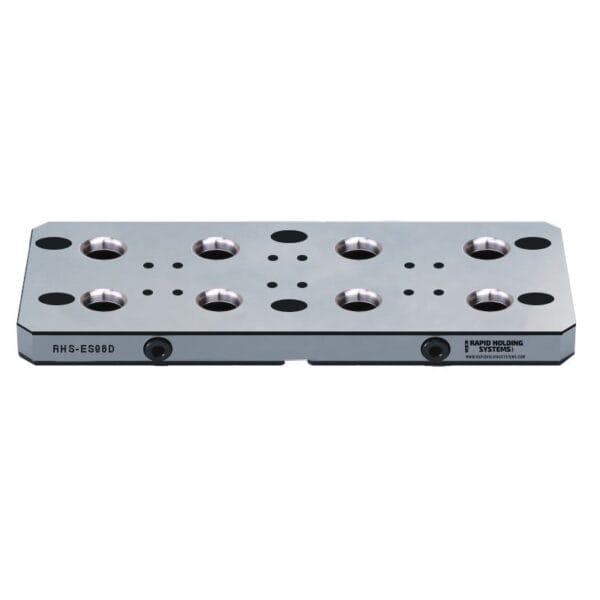

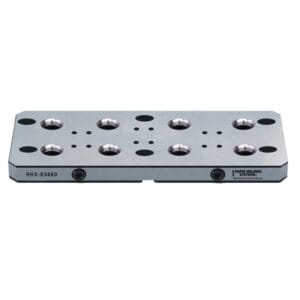

Zero-point Double plate 96 for Self centering vise
Zero-point Double plate 96 for Self centering vise
- -Size: 384 x 156 x 30
-Material: Steel (S)
-3 times higher locking force
-patent ejection function, Vise will be ejected from the base plate when loosen with the hex key.
-Optimized flap edge for mounting in the center groove.
-Compatible with RHS series PV125-75 / PV125-125
SKU: RHS-ES96D
- Description
- Additional information
- Reviews (0)
Description
‘-Size: 384 x 156 x 30
-Material: Steel (S)
-3 times higher locking force
-patent ejection function, Vise will be ejected from the base plate when loosen with the hex key.
-Optimized flap edge for mounting in the center groove.
-Compatible with RHS series PV125-75 / PV125-125
| Specifications | |
| Dimensions | 384 x 156 x 30 |
| Zero point systems | 96 |
| Zero point bolt | 20 |
| Compatible with series | PV125-75 / PV125-125 |
| Holding force (kN) | 60 |
| Accuracy (mm) | 0.008 |
| Max tightening torque (Nm) | 45 |
| Weight (kg) | 14.7 |
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 7 × 7 × 5 cm |
| Compatibility for vises | Universal, Zero-Point Bolts |
| Zero-Point Adaptable | 96mm |
