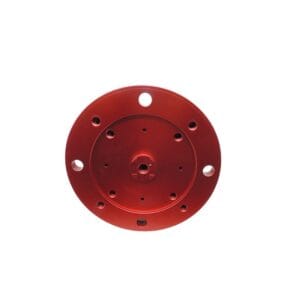

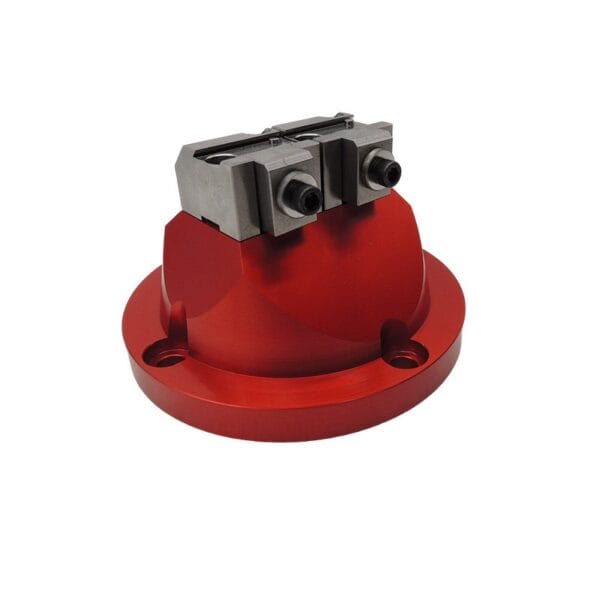

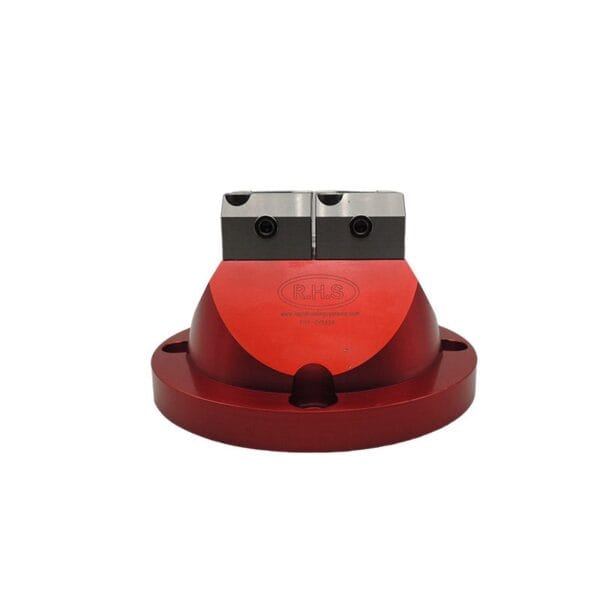

Dovetail Pallet for Multi-Surface Machining
$900.00
Dovetail Pallet U16 for Multi-Surface Machining (without power centering plate)

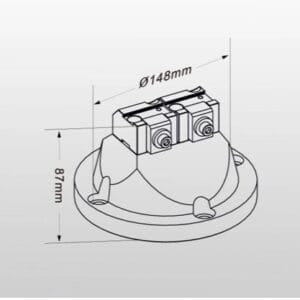

Dovetail Pallet for Multi-Surface Machining is without power centering plate. RHS dovetail Fixture Pallet Can Be Customized and Easy to Clamping One Time and Multi-Suface Process. Finished size is D148*87mm and accuracy is 0.02mm.
- Description
- Additional information
- Reviews (0)
Description
Dovetail Pallet U16 for Multi-Surface Machining
Dovetail Pallet for Multi-Surface Machining. RHS dovetail Fixture Pallet Can Be Customized and Easy to Clamping One Time and Multi-Suface Process. Finished size is D148*87mm and accuracy is 0.02mm.
| Version | Fixture pallet can be customized |
| Application | For using 5 axis machine |
| Advantage | Unique forked tail holding position,Workpiece repeatavility with 0.02 mm ,easy to clamping one time and multi-surface machining |
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 10 × 10 × 7 cm |
| Material for Vises | Stainless Steel |
| Compatibility for vises | Universal |
