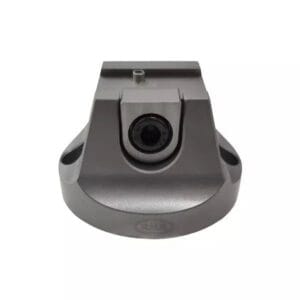

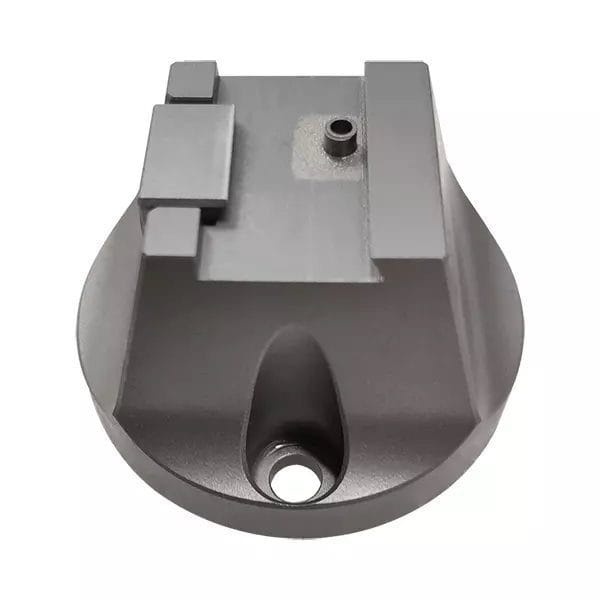

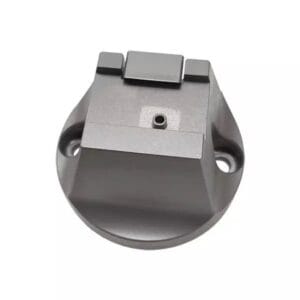

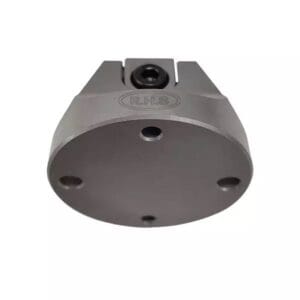

Dovetail Slot Collet D49 for Metal Processing
$160.00
Dovetail Slot Collet for Metal Processing
Dovetail Collet D49*30mm, with dovetail width 15mm is useful for Copper, Aluminum and Other Metal Cutting Processing because of its Blank Positioning, Small Clamping Position. Material is stainless steel. Dovetail angle 60°. With standard ITS 50 interface, it is able to connect to the machine or mount on plate with screws. RHS Dovetail Slot Collet holder 49 is made of stainless steel.
Download .stp file.
- Description
- Additional information
- Reviews (0)
Description
Dovetail Slot Collet for Metal Processing
Dovetail Collet D49*30mm, with dovetail width 15mm is useful for Copper, Aluminum and Other Metal Cutting Processing because of its Blank Positioning, Small Clamping Position. Material is stainless steel.
Dovetail angle 60°. With standard ITS 50 interface, it is able to connect to the machine or mount on plate with screws. Dovetail Slot Collet holder 49 is made of stainless steel.
| Version | D49*30mm, with dovetail width 15mm ans standard ITS 50 interface. Connecting the machine or mounting plate with screws, Dovetail angle 60° |
| Application | Copper, alumimum and other metal cutting processing |
| Advantage | Blank positioning ,small clamping position, 5-axis machining per time. small size and wide installtion range |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 10 × 7 cm |
| Material for Vises | Stainless Steel |
| Compatibility for vises | Universal |
| Zero-Point Adaptable | 52mm |
