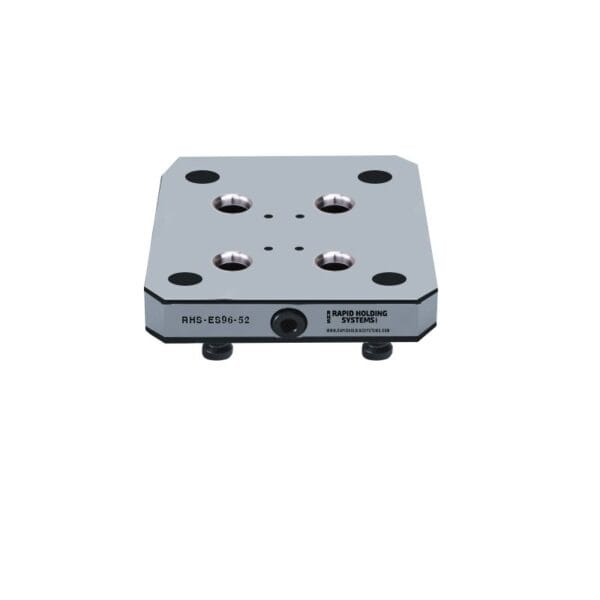

Zero-point Adaptor plate 96 to 52 for Self centering vise
$1,025.00
Zero-point Adaptor plate 96-52 for Self centering vise
- Size: 150 x 126 ×30
-Material: Steel (S)
-works on all Zero point 96 system to convert to 52 system.
-3 times higher locking force
-patent ejection function, Vise will be ejected from the base plate when loosen with the hex key.
-Optimized flap edge for mounting in the center groove.
-Compatible with RHS series PV77-54 / PV77-75
- Description
- Additional information
- Reviews (0)
Description
‘-Size: 150 x 126 ×30
-Material: Steel (S)
-works on all Zero point 96 system to convert to 52 system.
-3 times higher locking force
-patent ejection function, Vise will be ejected from the base plate when loosen with the hex key.
-Optimized flap edge for mounting in the center groove.
-Compatible with RHS series PV77-54 / PV77-75
| Specifications | |

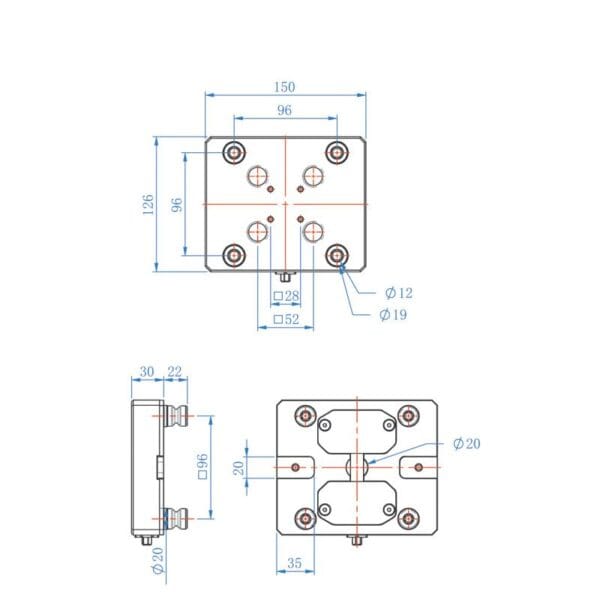

| Dimensions | 150 x 126 ×30 |
| Zero point systems | 96 to 52 |
| Zero point bolt | 16 |
| Compatible with series | PV77-54 / PV77-75 |
| Holding force (kN) | 60 |
| Accuracy (mm) | 0.008 |
| Max tightening torque (Nm) | 45 |
| Weight (kg) | 3.5 |
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 7 × 7 × 5 cm |
| Clamping Width for Vises | |
| Jaw Width for Vises | 100 mm, 75 mm |
| Material for Vises | Stainless Steel |
| Compatibility for vises | Universal, Zero-Point Bolts |
| Zero-Point Adaptable | 52mm, 96mm |
