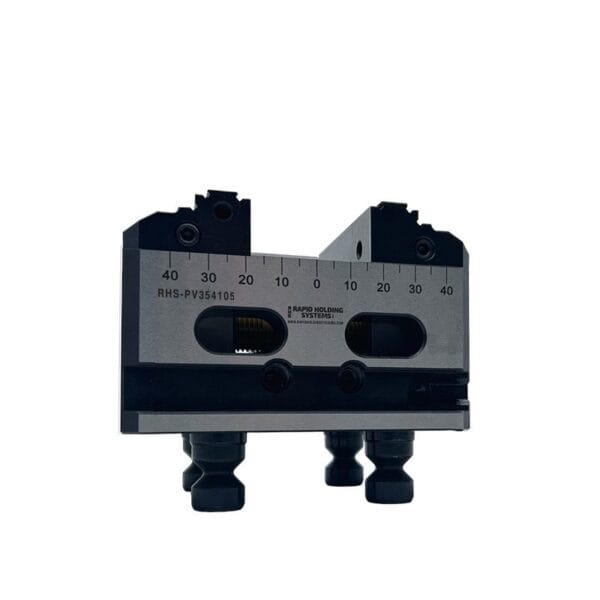

Zero point 5-Axis Self-Centering Vise 105×54 – PV77-54 Series
$1,344.00
Size is 105x54mm, Height 70mm
-Clamping Range 0 to 77mm.
-Quickly change the direction of the jaws and rotate 180¡ to increase the clamping range.
-Special angle lock mechanism, preventing workpiece lifting when locked.
-Clamping repeating accuracy within 0.005mm.
-Special swing 1.5¡ design on one side clamping jaw for better gripping when workpiece is non-parallel.
- Description
- Additional information
- Reviews (0)
Description
Zero point 5-Axis Self-Centering Vise 105×54
–Size is 105X54 mm, Height 70mm
–Clamping Range 0 to 77mm.
-Quickly change the direction of the jaws and rotate 180° to increase the clamping -range
-Special angle lock mechanism to prevent workpiece lifting when locked.
-special swing 1.5° design on one side clamping for better gripping when workpiece is non parallel.

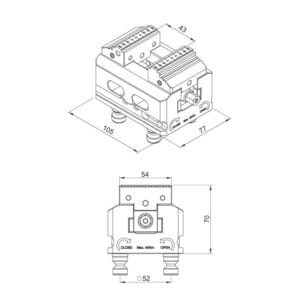

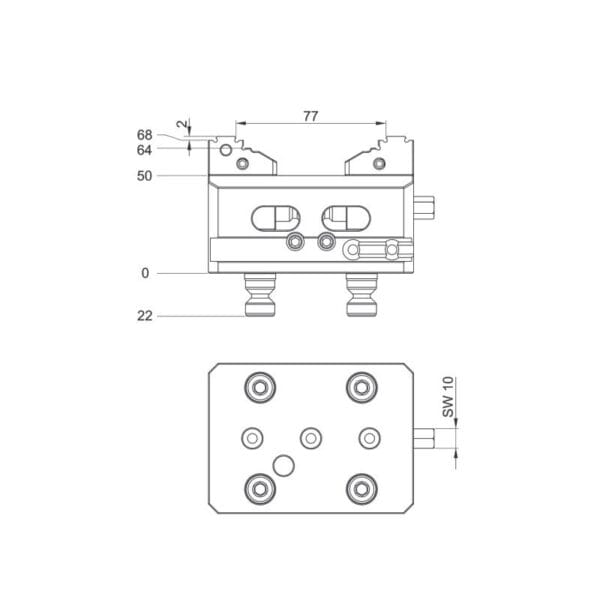

| Specifications | |
| Body Length (mm) | 105 |
| Clamping range (mm) | 0 to 77 |
| Jaw width (mm) | 54 |
| Tightening Torque (Nm) | 60 |
| Clamping force (kN) | 12 |
| Centering accuracy (mm) | ±0.01 |
| Weight (kg) | 3 |
| Includes | clamping studs |
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 15 × 12 × 10 cm |
| Material for Vises | Stainless Steel |
| Compatibility for vises | Universal, Zero-Point Bolts |
| Zero-Point Adaptable | 52mm |
