Erowa Uniplate ø 72 ER-035212 ITS Flat Steel holder compatible
$105.00
Erowa Uniplate ø 72 ER-035212 ITS Flat Steel holder
Erowa Uniplate ø 72 ER-035212 ITS Flat Steel holder compatible. ER-035212 ITS Flat Steel holder is system size ITS 50 without spigot. It is optimal choice for automatic production.It applies to mount electrodes and work-pieces with surface more than square 40 x 40 mm or φ50 mm. Work-pieces and electrodes are locked by 2 Pin-lock locking pins.
- Description
- Additional information
- Reviews (0)
Description
Erowa Uniplate ø 72 ER-035212 ITS Flat Steel holder
Erowa Uniplate ø 72 ER-035212 ITS Flat Steel holder compatible. ER-035212 ITS Flat Steel holder is system size ITS 50 without spigot. It is optimal choice for automatic production.It applies to mount electrodes and work-pieces with surface more than square 40 x 40 mm or φ50 mm. Work-pieces and electrodes are locked by 2 Pin-lock locking pins.

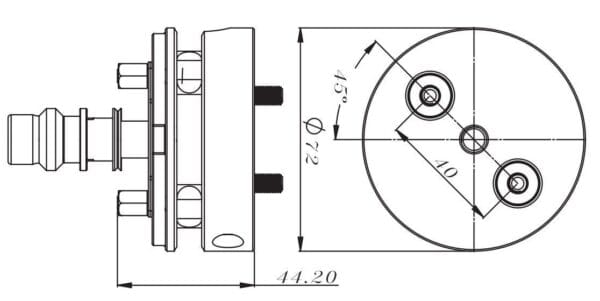

| SPECIFICATION | |
| SIZE | D72X44.2mm |
| MATERIAL | STAINLESS STEEL 420 |
| HARDNESS | 30-36HRC |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 4 × 4 × 4 cm |
| Material | |
| Maximum Electrode Size (mm) | Variable |
| Holder Type | Flat Holder |
| System Compatibility | Erowa ITS |
