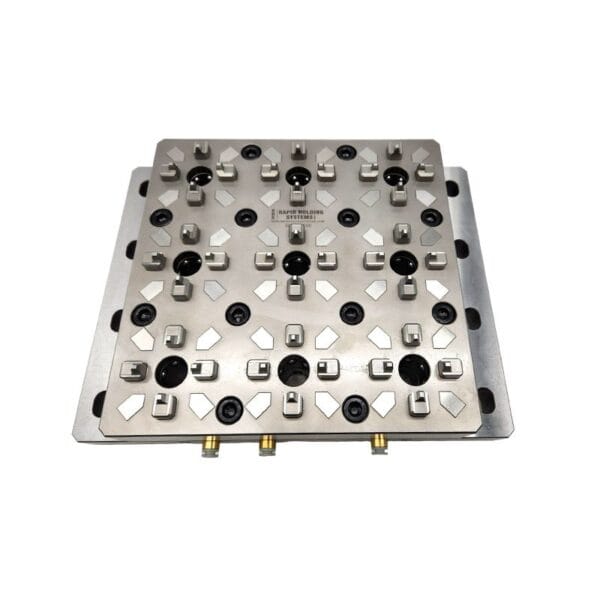

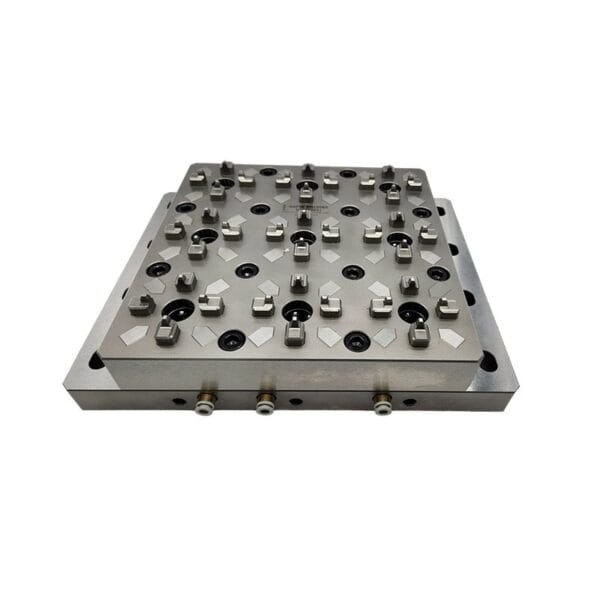

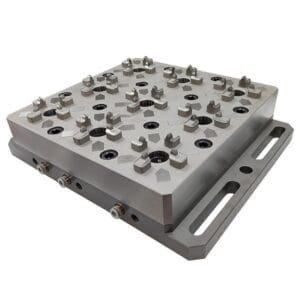

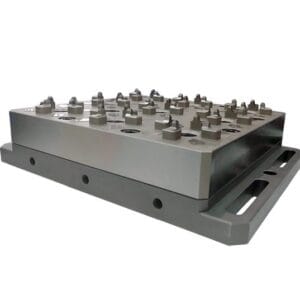

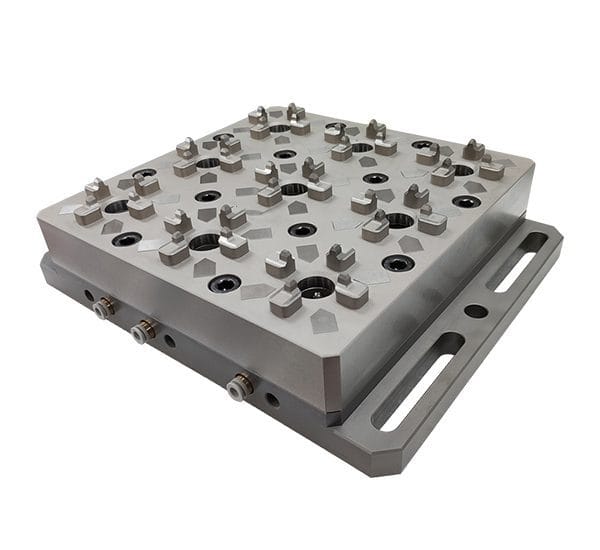

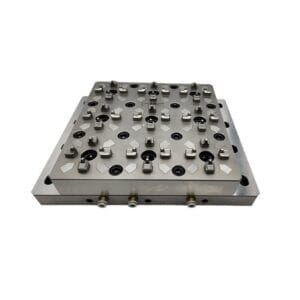

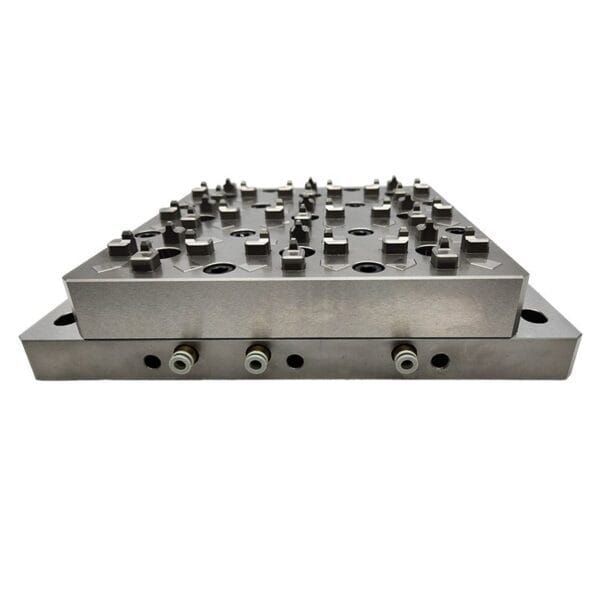

Erowa compatible 9 in 1 Tiny Pneumatic Chuck
$8,500.00
Erowa compatible 9 in 1 Tiny Pneumatic Chuck
Erowa 9 in 1 tiny pneumatic chuck is compatible with ER-011803 Pneumatic Chuck 50 RSA. This set up is also comes for Erowa pneumatic chuck compatible ER-007604. System has 9 pieces of quick chuck 50 RSA ER-011803 or ER-007604 combined together with 9 locators which are designed for milling 9 workpieces at once. Perfect for small size electrode processing beneficial as it improves production efficiency in the limited space of CNC table. 9 in 1 Erowa system requires air pressure 6bars minimum, clamping force for every chuck locator can up to 6000N. It is controlled by air gun or pneumatic valves. Every 3 locators are controlled by 1 pneumatic valve.
- Description
- Additional information
- Reviews (1)
Description
Erowa compatible 9 in 1 Tiny Pneumatic Chuck
Erowa 9 in 1 tiny pneumatic chuck is compatible with ER-011803. Pneumatic Chuck 50 RSA. This set up is also coming for Erowa pneumatic chuck compatible ER-007604. The system has 9 pieces of quick chuck 50 RSA ER-011803 or ER-007604 combined together with 9 locators which are designed for milling 9 workpieces at once. Perfect for small size electrode processing beneficial as it improves production efficiency in the limited space of CNC table. 9 in 1 Erowa system requires air pressure 6bars minimum, clamping force for every chuck locator can up to 6000N. It is controlled by air gun or pneumatic valves. Every 3 locators are controlled by 1 pneumatic valve.

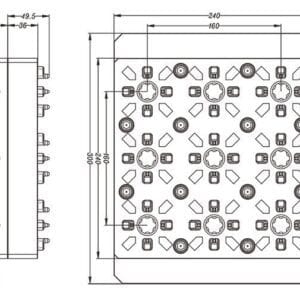

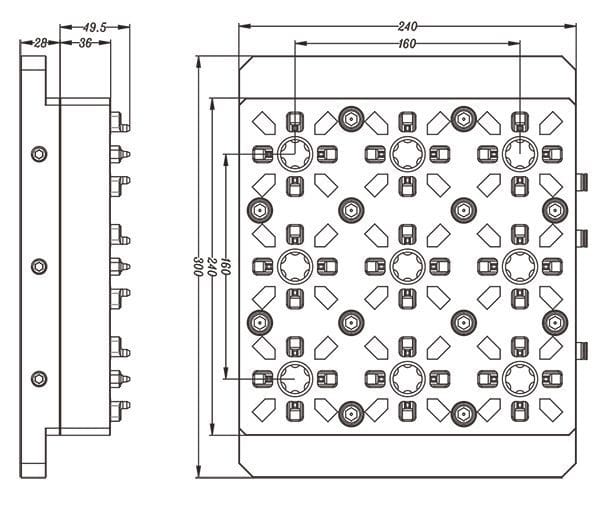

| SPECIFICATION | |
| SIZE | 300X240X77.5mm |
| MATERIAL | NIPPON STAINLESS STEEL 57-60HRC |
| AIR PRESSURE REQUIRE | 6 BAR , WITH AIR CLEANING FUNCTION |
| FORCE POWER | 6000N |
| SWITCH | 3 CHUNKS CONTROL BY 1 SWITCH,TOTAL 3 SWITCH |
Additional information
| Weight | 18 kg |
|---|---|
| Dimensions | 16 × 16 × 8 cm |
| Actuation Type | Pneumatic |
| System Compatibility | Erowa ITS |
