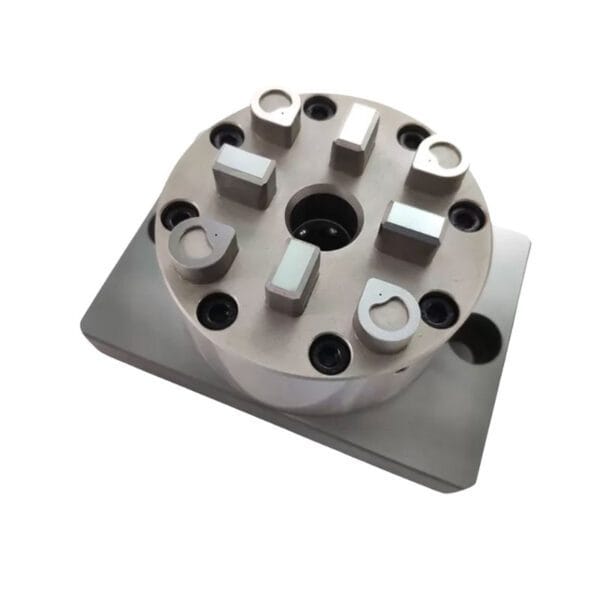

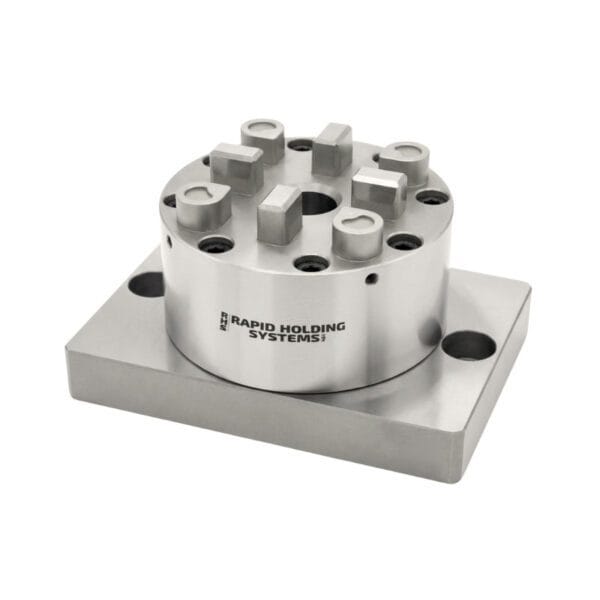

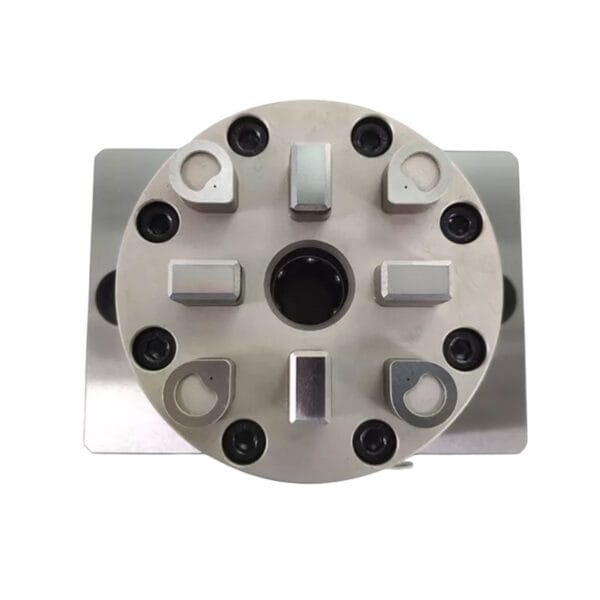

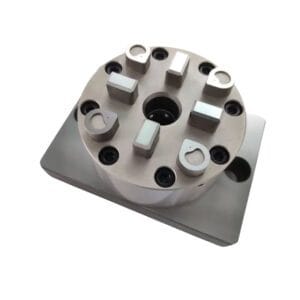

System 3R Compatible 3R-610.46-30 D100 3R Pnuematic Chuck w/ CNC Base
$1,813.00
SYSTEM 3R 3R-610.46-30 PNEUMATIC CHUCK ON BLOCK MACRO
System 3R Compatible 3R-610.46-30 D100 3R Pnuematic Chuck with CNC Base. Pneumatic chuck for horizontal or vertical use.
- Required drawbar 3R-605.1 or 3R-605.4
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Air unit included
- Description
- Additional information
- Reviews (1)
Description
SYSTEM 3R 3R-610.46-30 PNEUMATIC CHUCK ON BLOCK MACRO
System 3R Compatible 3R-610.46-30 D100 3R Pnuematic Chuck with CNC Base. Pneumatic chuck for horizontal or vertical use.
- Required drawbar 3R-605.1 or 3R-605.4
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Air unit included
| SPECIFICATION | |

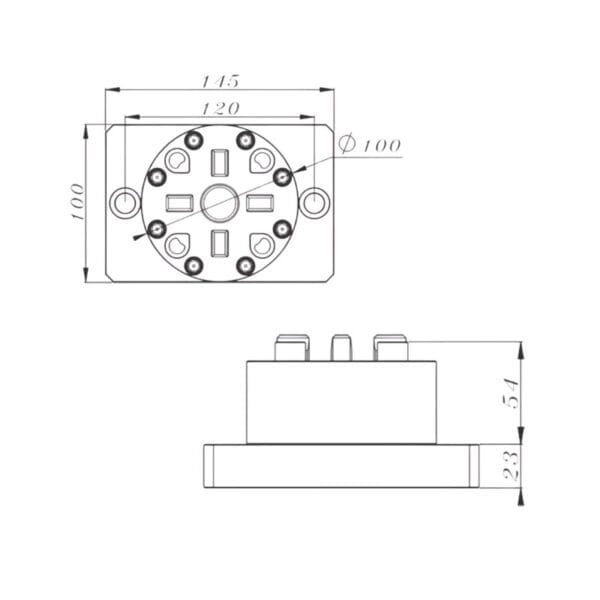

| SIZE | 145X100X77mm |
| MATERIAL | NIPPON STAINLESS STEEL 57-60HRC |
| MIN AIR PRESSURE | 6 BAR |
| FORCE POWER | 10000N |
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 7 × 7 × 5 cm |
| Actuation Type | Pneumatic |
| System Compatibility | System 3R MacroStandard |
