System 3R 3R-659.32-P Macro Collet Holder Compatible for ER32 Collets
$727.00
System 3R Compatible 3R-659.32-P Macro Collet Holder for ER32 Collets
System 3R 3R-659.32-P compatible Collet chuck ER32 Macro
– Flushing duct.
– Electrode 2-20 mm.
– Building-in height 94 mm.
- Description
- Additional information
- Reviews (0)
Description

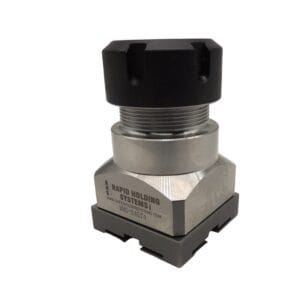

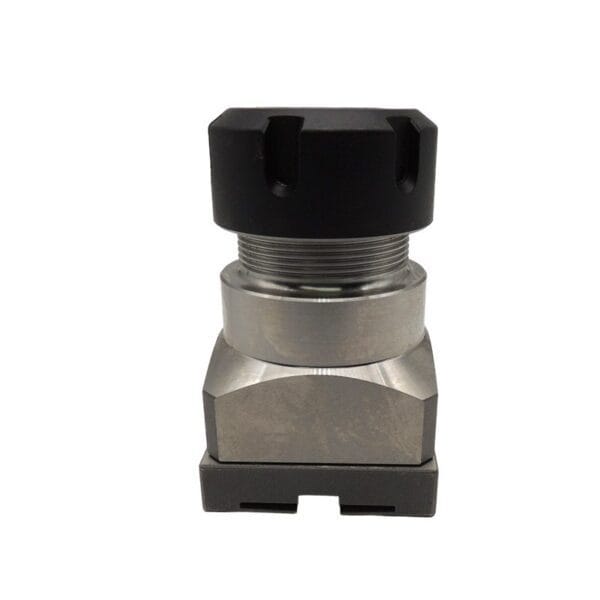

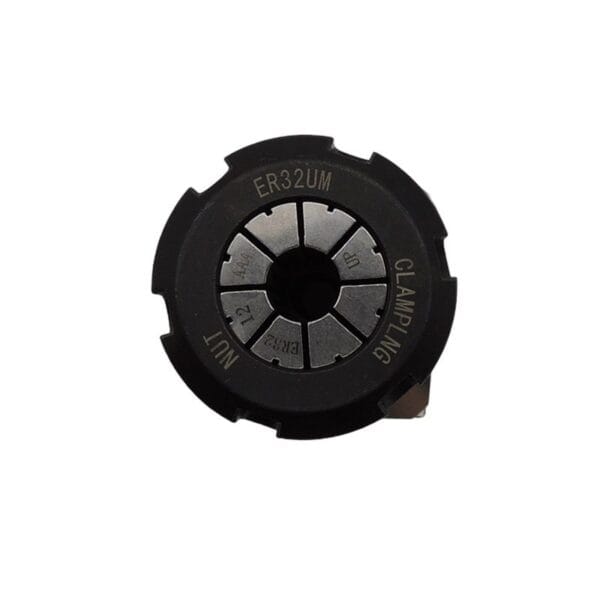

System 3R Compatible 3R-659.32-P Macro Collet Holder for ER32 Collets
System 3R 3R-659.32-P compatible Collet chuck ER32 Macro
– Flushing duct.
– Electrode 2-20 mm.
– Building-in height 94 mm.
– Weight 1.2 kg.
| SPECIFICATION | |
| NAME | ER-32 COLLECT HOLDER |
| SIZE | 52X53X78mm |
| MATERIAL | STAILNLESS STEEL 420 48-52HRC |
| INCLUDED | COLLET 1pcs |
| TOLERANCE | AFTER ASSEMBLY COPPER ELECTRODE. CONNECTIVITY TOLERANCE ± 0.015mm |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Actuation Type | Manual |
| Material | |
| Holder Type | ER32 Collet |
| System Compatibility | System 3R MacroStandard |
