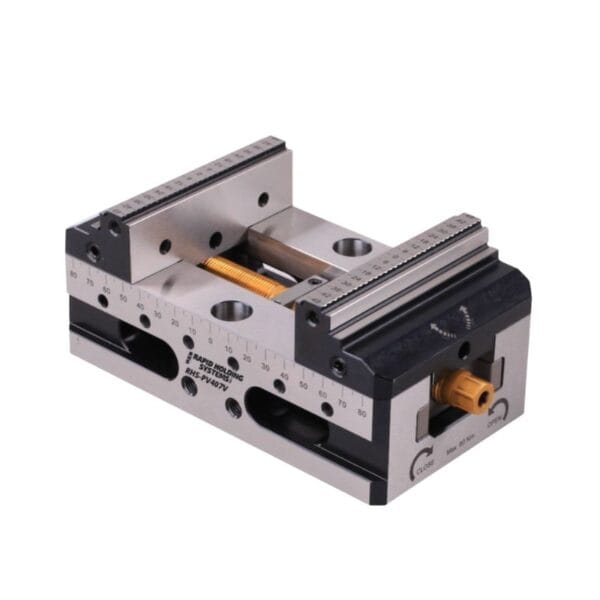

Self-centering Vise 180×100
$1,486.00
Size is 180x100mm, Height 80mm
-Clamping Range 0-90mm
-Quickly change the direction of the jaws and rotate 180¡ to increase the clamping range.
-Special angle lock mechanism, preventing workpiece lifting when locked.
-Clamping repeating accuracy within 0.005mm.
-Special swing 1.5¡ design on one side clamping jaw for better gripping when workpiece is non-parallel.
- Description
- Additional information
- Reviews (0)
Description
Size 180x100Height 80mm
-Achieve variable clamping range with different jaws.
-Quickly change the direction of the jaws and rotate 180 to increase the clamping range.
-Dust protective cover is included.
-Clamping repeating accuracy within 0.005mm.

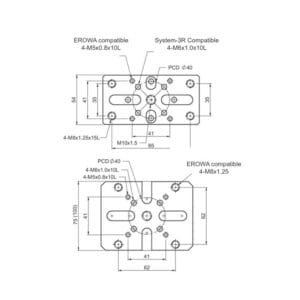

-Compatible with EROWA & System-3R.
-Standard large and small jaw sets provided
| Specifications | |
| Series | 64850-407V |
| Model | RHS-PV407VE |
| Body Length (mm) | 180 |
| Clamping range (mm) | 0 to 90 |
| Jaw width (mm) | 100 |
| Weight (kg) | 6.8 |
| Includes | Type A and Type B jaw sets |
Additional information
| Weight | 6.8 kg |
|---|---|
| Dimensions | 15 × 12 × 10 cm |
| Material for Vises | Stainless Steel |
| Compatibility for vises | Universal, Zero-Point Bolts |
