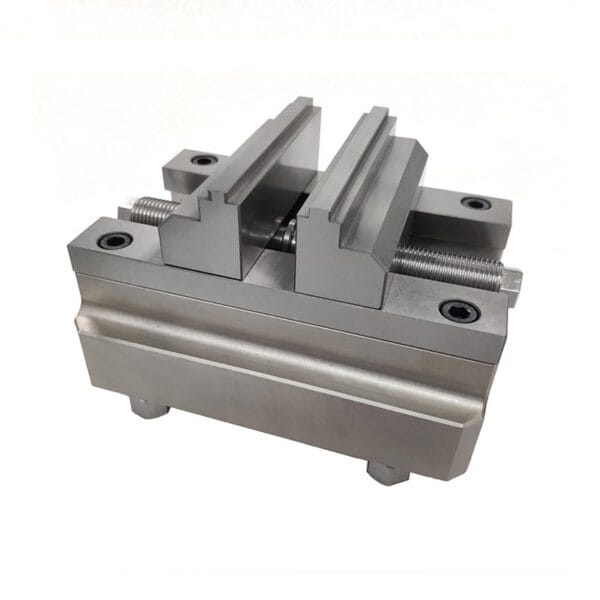

Mini Precision Self Centering Vise on Compatible Erowa plate
$895.00
Mini Precision Self Centering Vise on Erowa compatible plate
Mini Precision Self Centering Vise on Centering Plate G INOX ER-036658 compatible. Clamping Maximum Work Piece Size 70mm. Double Self Centered with Repeating Accuracy of 0. for Vertical and Horizontal Processing Machine.
- Description
- Additional information
- Reviews (0)
Description
Mini Precision Self Centering Vise on Erowa compatible plate
Mini Precision 5 Axis Self Centering Vise on Centering Plate G INOX ER-036658 compatible. Clamping Maximum Work Piece Size 70mm. Double Self Centered with Repeating Accuracy of 0. for Vertical and Horizontal Processing Machine.
| SPECIFICATION | |
| Application | For 5 axis cnc machining use |
| Clamping | Maximum Work Piece Size 70mm |
| Material | Stainless Steel |
| Accuracy | 0.01mm |
| Version | Mini Self Centering Vise mounted on Erowa plate INOX ER-036658 |
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 10 × 10 × 7 cm |
| Clamping Range for Vises | |
| Material for Vises | Stainless Steel |
| Compatibility for vises | EROWA Compatible, Zero-Point Bolts |
