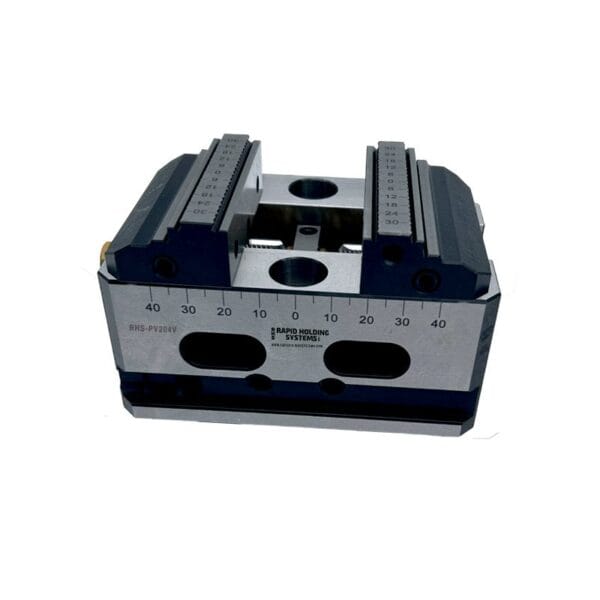

Self-centering Vise 105X54
$1,200.00
Size is 105X54mm, Height 70mm
-Clamping Range 0-35mm.
-Achieve variable clamping range with different jaws.
-Quickly change the direction of the jaws and rotate 180 to increase the clamping range.
-Dust protective cover is included.
-Clamping repeating accuracy within 0.005mm.

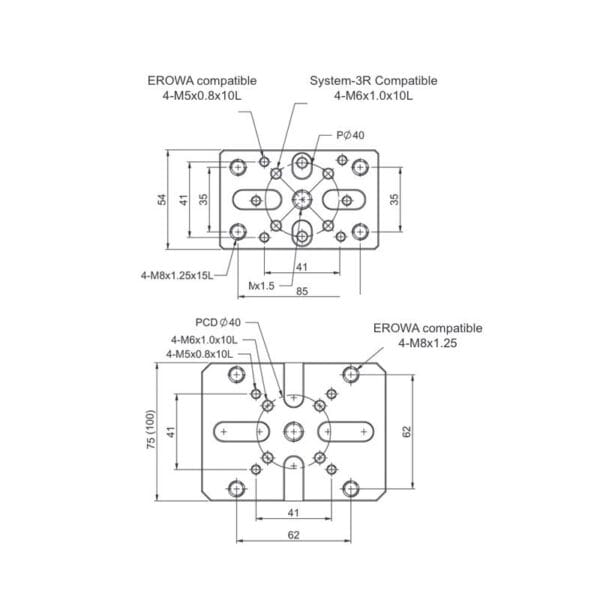

-Compatible with EROWA & System-3R.
-Standard large and small jaw sets provided
- Description
- Additional information
- Reviews (0)
Description
Size 105X54 Height 70mm
-Achieve variable clamping range with different jaws.
-Quickly change the direction of the jaws and rotate 180 to increase the clamping range.
-Dust protective cover is included.
-Clamping repeating accuracy within 0.005mm.
-Compatible with EROWA & System-3R.
-Standard large and small jaw sets provided

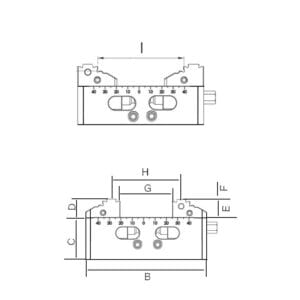

| Specifications | |
| Series | 64850-204V |
| Model | RHS-PV204V |
| Body Length (mm) | 105 |
| Clamping range (mm) | 0 to 35 |
| Jaw width (mm) | 100 |
| Weight (kg) | 2.3 |
| Includes | Type A and Type B jaw sets |
Additional information
| Weight | 2.3 kg |
|---|---|
| Dimensions | 15 × 12 × 10 cm |
| Material for Vises | Stainless Steel |
| Compatibility for vises | Universal, Zero-Point Bolts |
