Name: RHS Flexible tooling dual clamping Vise
SKU: RHS-FV12
Availability: InStock

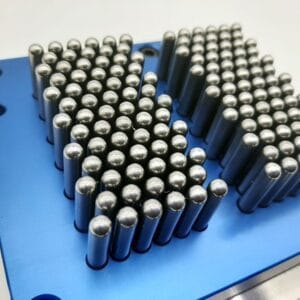

RHS Flexible tooling dual clamping Vise

0 out of 5

( There are no reviews yet. )

Original price was: $3,850.00.Current price is: $3,550.00.

RHS Flexible tooling dual clamping Vise.

Pins are grouped together to compose the gripping part of the fixture. The pin gripping function allows for the secure and damage–free gripping of complex or otherwise irregular shaped workpieces. This system is the ideal solution for manufacturers of complex components. This partucilar fixture has dual pins inland on top to give double clamping capability.

Reach out to us for the 3D cad model.

SKU: RHS-FV12

Save for later

Description
Additional information
Reviews (0)

Description

RHS Flexible tooling dual clamping Vise.

Pins are grouped together to compose the gripping part of the fixture. The pin gripping function allows for the secure and damage–free gripping of complex or otherwise irregular shaped workpieces. This system is the ideal solution for manufacturers of complex components. This particular fixture has dual pins inland on top to give double clamping capability.

Size	115×75
Material	High-quality steel, 48-52HRC
The diameter pins	5mm
Stroke	20mm
Max loading weight	250kg
Max locking force	30nm
Net weight	5 kg

Additional information

Weight	5 kg
Dimensions	15 × 10 × 8 cm
Clamping Range for Vises	0–50 mm, 50–100 mm, 100–150 mm, 150–200 mm, 200 mm+
Material for Vises	Stainless Steel
Compatibility for vises	Universal
