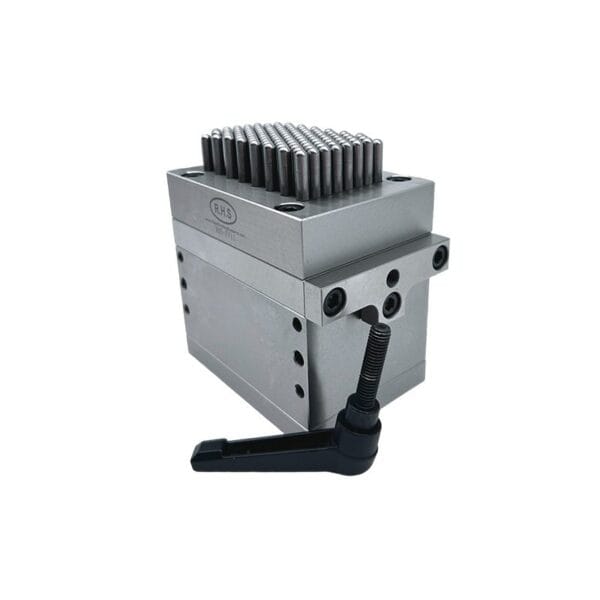

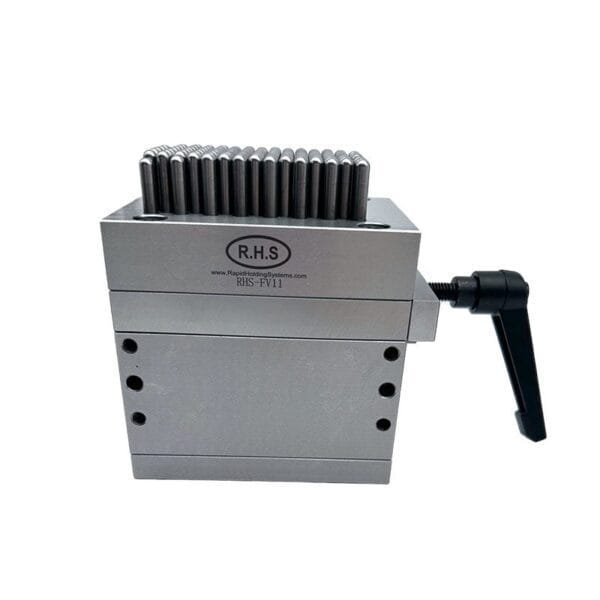

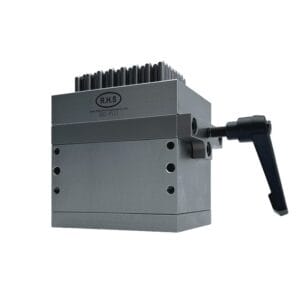

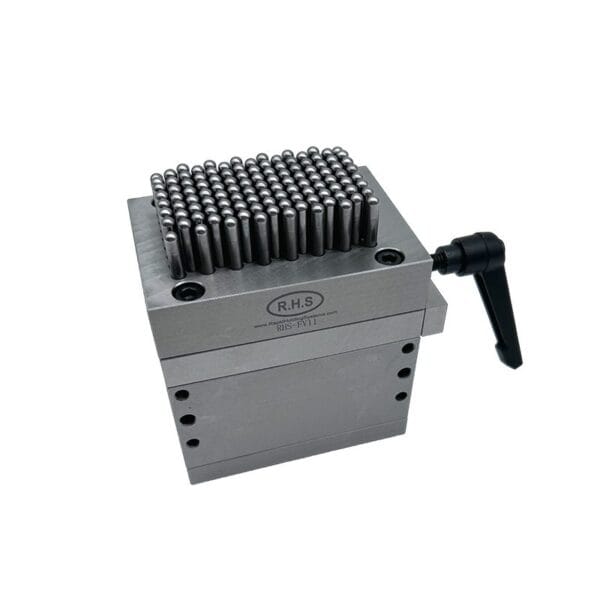

RHS Flexible Clamping Tooling Fixture 115X75X122mm
$1,945.00
RHS Flexible Clamping Tooling Fixture 115X75X122mm
RHS Flexible Clamping Tooling Fixture 115X75X122mm. Pins are grouped together to compose the gripping part of the fixture. The pin gripping function allows for the secure and damage-free gripping of complex or otherwise irregular-shaped workpieces. This system is the ideal solution for manufacturers of complex components.
Contact Us for CAD Model.
- Description
- Additional information
- Reviews (0)
Description
RHS Flexible Clamping Tooling Fixture 115X75X122mm
RHS Flexible Clamping Tooling Fixture 115X75X122mm. Pins are grouped together to compose the gripping part of the fixture. The pin gripping function allows for the secure and damage-free gripping of complex or otherwise irregular shaped workpieces. This system is the ideal solution for manufacturers of complex components.

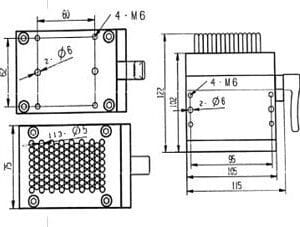

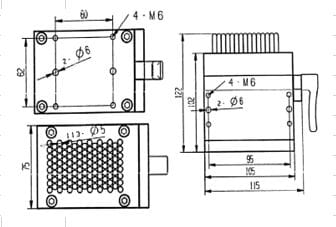

| Size | 115x75X122mm |
| Material | High-quality steel |
| Material | 48-52HRC |
| The diameter pins | 5mm |
| Pins quantity | 113p |
| Stroke | 20mm |
| Max loading weight | 250kg |
| Max locking force | 30nm |
| Net weight | 3.5kg |
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 16 × 12 × 8 cm |
| Clamping Range for Vises | |
| Material for Vises | Aluminum, Stainless Steel |
| Compatibility for vises | Universal |
