Wirecut EDM Manual Adjustable Precision Vise
$2,125.00

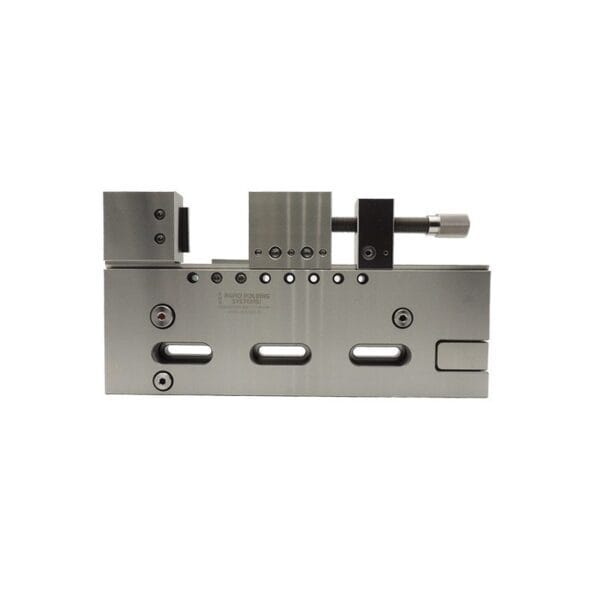

RHS Wirecut EDM Manual Adjustable Precision Vise
SPECIFICATIONS: material: stainless steel, anti-corrosion, stand wear and tear.can be clamped accurately and suitable for small parts. the main body can be adjusted slightly. Precise Adjustment to X, Y, Z-Axis. AS good as GERARDI VISE, VERTEX VISE.
clamp size: 0-100mm
Repeatability: 0.005mm/100mm
Material: stainless steel
AS good as GERARDI VISE, VERTEX VISE.
- Description
- Additional information
- Reviews (1)
Description
RHS Wirecut EDM Manual Adjustable Precision Vise
SPECIFICATIONS: material: stainless steel, anti-corrosion, stand wear and tear.can be clamped accurately and suitable for small parts. the main body can be adjusted slightly. Precise Adjustment to X, Y, Z-Axis. AS good as GERARDI VISE, VERTEX VISE.
| Model | RHS-W5966 | RHS-W5966-B |
| Size(mm) | 100 | 160 |
| A | 260 | 350 |
| B | 170 | 170 |
| C | 24 | 24 |
| D | 50 | 60 |
| E | 60 | 80 |
| G(max) | 100 | 160 |
| weight(kg) | 4.8 | 7 |
| maximumload(kg) | 6 | 10 |
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 20 × 20 × 15 cm |
| Compatible Workpiece Shape | Rectangle, Square |
| System Compatibility | Universal |
| Maximum Clamping Width (mm) | 100 |
| Maximum Workpiece Weight (Kg) | 10 |
| Tightening Torque (Nm) | 10 |
| Material |
