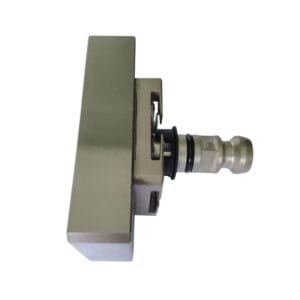

System 3R 3R-606.1 Compatible Macro Master Parallel Gauging - Image 4
3R-656.21-SP03-Spring-Type-Centering-Sensor System 3R 3R-656.21-SP03 centering sensor 3mm tip Macro Compatible Spring loaded
System 3R 3R-659.32-P Macro Collet Holder Compatible for ER32 Collets

System 3R 3R-606.1 Compatible Macro Master Parallel Gauging

0 out of 5
( There are no reviews yet. )

$1,040.00

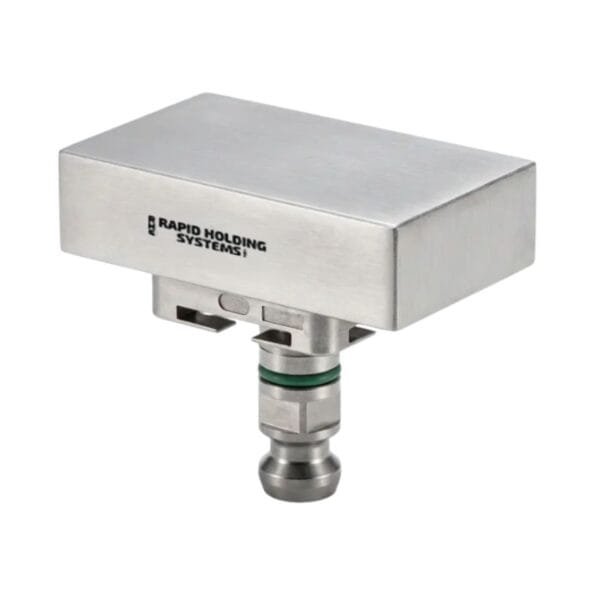

System 3R 3R-606.1 Compatible Macro Master Parallel Gauging

System 3R 3R-606.1 Compatible Parallel Gauging Pin is compatible with System 3R and it is equivalent to 3R-606.1-N. It is use for setting angular positions and for centering chucks.

SKU: RHS-S4568
Ask for Quote
Ask for Quote
Save for later

Description

System 3R 3R-606.1 Compatible Macro Master Parallel Gauging

Parallel Gauging Pin is compatible with System 3R and it is equivalent to 3R-606.1-N. It is use for setting angular positions and for centering chucks

SPECIFICATION
NAMEPARALLEL GAUGING PIN(3M)
SIZE100X60X37.5mm
MATERIALSTAINLESS STEEL 420 48-52HRC
TOLERANCEPARALLELISM ± 0.02mm

Additional information

Weight2 kg
Dimensions7 × 7 × 5 cm
Actuation Type

Manual
