Erowa sensor ER-008638 compatible D8 Centering sensor Stationary Tip 8mm
$510.00
Erowa ER-008638 ER-010562 compatible D8 Centering Sensor Stationary 8mm tip
EROWA ER-008638 ER-010562 D8 SPRING CENTERING SENSOR 8MM. Equivalent to ER-008638 and ER-010562. Holder with stationary sensing pin and tungsten carbide ball comes with 1 pc spigot. Repetition accuracy: X,Y,Z 0.002mm. Overrun protection: X, Y, Z 1 mm.
- Description
- Additional information
- Reviews (0)
Description

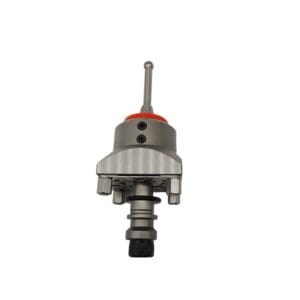

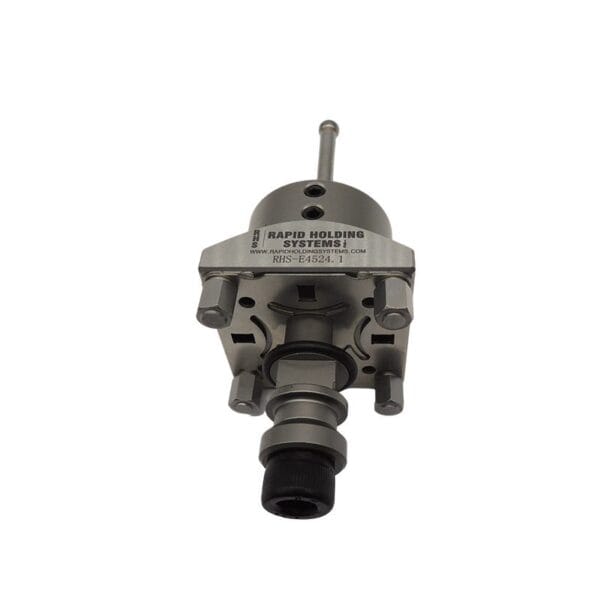

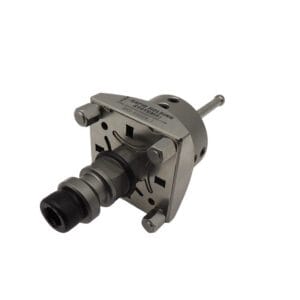

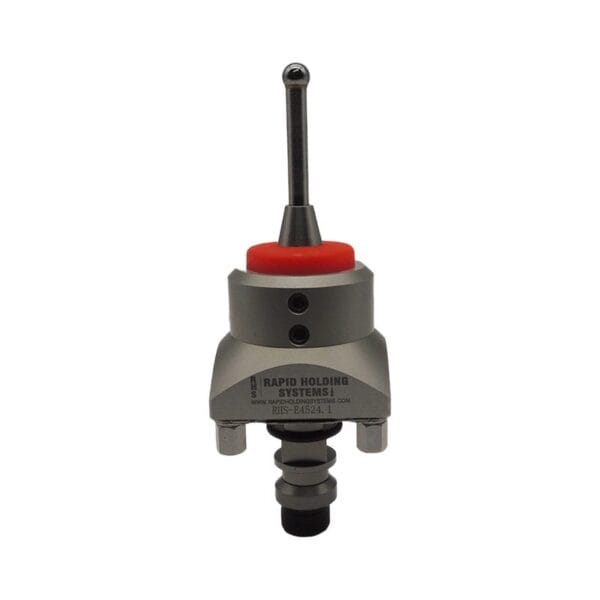

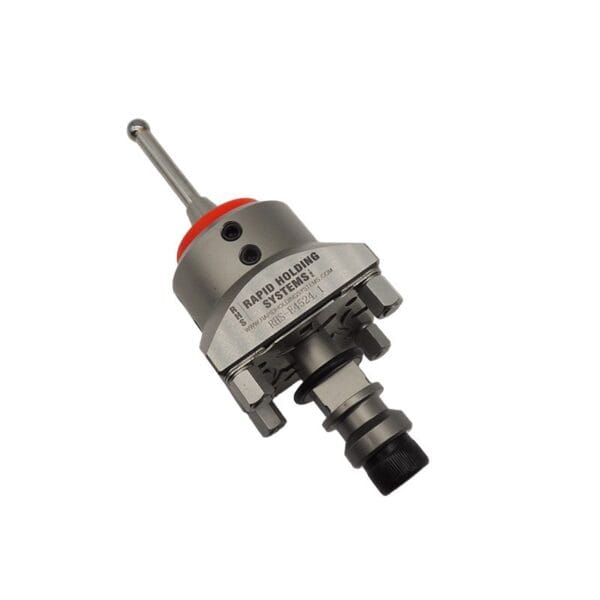

Erowa ER-008638 compatible D8 Centering sensor Stationary Tip 8mm
Erowa ER-008638 compatible D8Centering sensor Stationary Tip 8mm. It is useful because of its Automatic measurement of workpieces in CNC EDM sinking centers. Stationary tip Centering Sensor is highly accurate as fully compatible with EROWA ITS System but 50% low in cost. It is equivalent to ER-008638 and ER-010562. Holder with stationary sensing pin and tungsten carbide ball comes with 1 pc spigot. Repetition accuracy: X,Y,Z 0.002mm. Overrun protection: X, Y, Z 1 mm. comes with 1 pc spigot. Also available extra replacement tips (Note:Extra tip to be ordered separately)

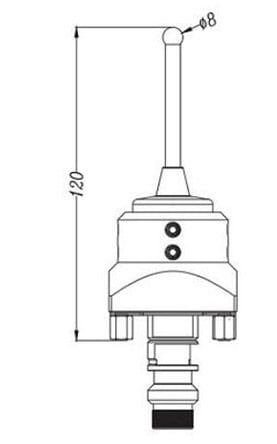

| SPECIFICATION | |
| SIZE | 51X51X120mm |
| MATERIAL | STAINLESS STEEL 420 32-36HRC |
| TOLERENCE | CONCENTRIC TOLERANCE ± 0.002mm |
| VERSION | STATIONARY TIP |
| BALL DIA | 8MM |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 4 × 4 × 2 cm |
| Ball Diameter (mm) | 8 |
| Deflection Type | Stationary |
| System Compatibility | Erowa ITS |
