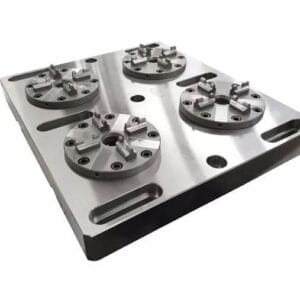

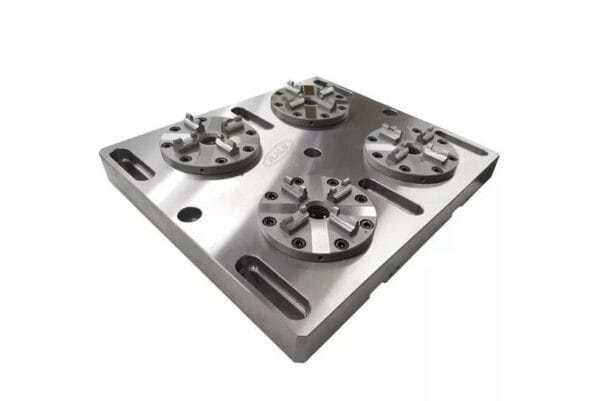

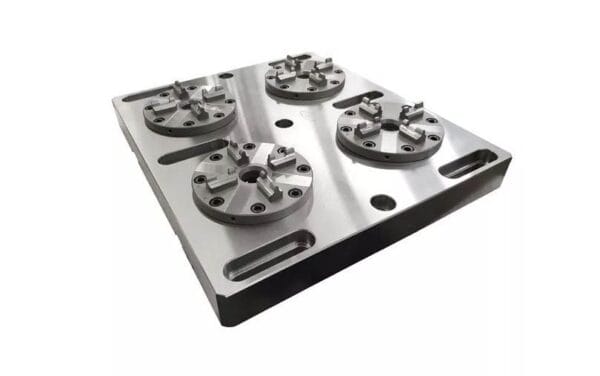

Erowa ER-035519 compatible 4 in 1 Optimized Pneumatic Chuck with CNC Base Plate
$7,500.00
Erowa ER-035519 compatible 4 in 1 Optimized Pneumatic Chuck with CNC Base Plate
Rapid Holding Systems 4 in 1 optimized pneumatic multichuck station is equivalent to 4 unites of Erowa Er-035519 compatible ITS Chuck 100 P integrated in a base plate and the inner parts assemble into the base.We develop this solution to get the advantages of ER-035519 ITS chuck in multichuck fashion. Air connections are at lateral side which are controlled by air gun or control unit. It applies to accommodating 4 pcs electrode holders or workpieces to do machining once at a time. Two locators are controlled by a air gun or a air control unit. Clamping force of each locator is up to 10000N. Rapid Holding Systems innovative new design helped many customers saving million of dollars to spend on a robot and get same performance from out RHS mutichuck stations.
- Description
- Additional information
- Reviews (1)
Description
Erowa ER-035519 compatible 4 in 1 Optimized Pneumatic Chuck with CNC Base Plate
Rapid Holding Systems 4 in 1 optimized pneumatic multichuck station is equivalent to 4 unites of Erowa Er-035519 compatible ITS Chuck 100 P integrated in a base plate and the inner parts assemble into the base.We develop this solution to get the advantages of ER-035519 ITS chuck in multichuck fashion. Air connections are at lateral side which are controlled by air gun or control unit. It applies to accommodating 4 pcs electrode holders or workpieces to do machining once at a time. Two locators are controlled by a air gun or a air control unit. Clamping force of each locator is up to 10000N. Rapid Holding Systems innovative new design helped many customers saving million of dollars to spend on a robot and get same performance from out RHS mutichuck stations.
Additional information

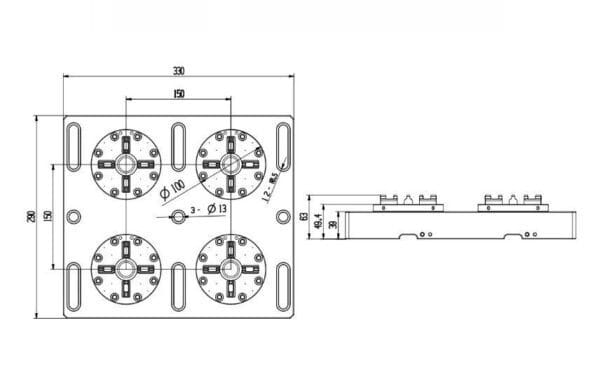

| Weight | 26.33 kg |
|---|---|
| Dimensions | 50 × 35 × 20 cm |
| Actuation Type | Pneumatic |
| System Compatibility | Erowa ITS |
1 review for Erowa ER-035519 compatible 4 in 1 Optimized Pneumatic Chuck with CNC Base Plate
Add a review
You must be logged in to post a review.
Related Products
EROWA COMPATIBLE ER-037970 9 IN 1 CNC Pneumatic Chuck D100 RHS-E4358
Original price was: $12,995.00.$11,500.00Current price is: $11,500.00.
Erowa Compatible Uniplate Electrode Holder Compatible
Price range: $28.00 through $33.00
Leonardo D. –
We recently purchased the 4 in 1 Optimized Pneumatic Chuck w/ CNC Base Plate from Rapid Holding Systems, and it has revolutionized our operations. It’s incredibly easy to set up and operate, and it’s given us the same performance that we would have expected from an expensive robotic system – but at a fraction of the cost. Highly recommend!
