Erowa ER-007521 ER-007580 compatible 80mm Pneumatic Rapid action EDM Chuck
$1,195.00
Erowa ER-007580 80mm Pneumatic Rapid action EDM Chuck. RHS 80mm EDM Pneumatic Chuck corresponds to ER-007580. It is equivalent to Rapid-action Chuck Automatic ER-007521 or Manual rapid-action chuck ER-007580.
- Description
- Additional information
- Reviews (0)
Description

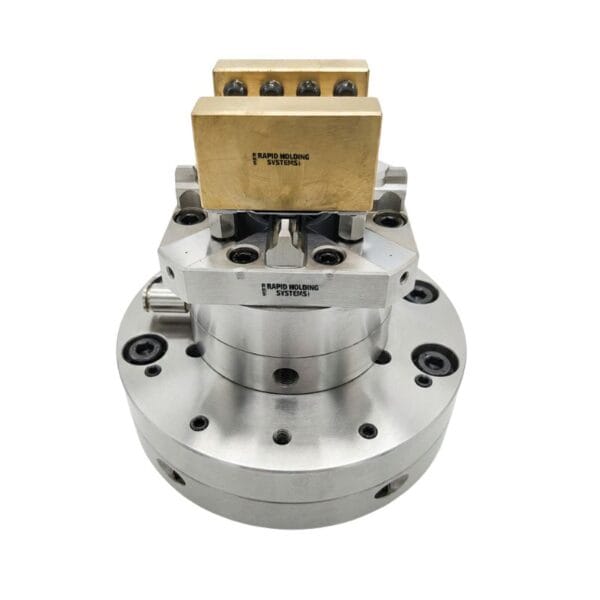

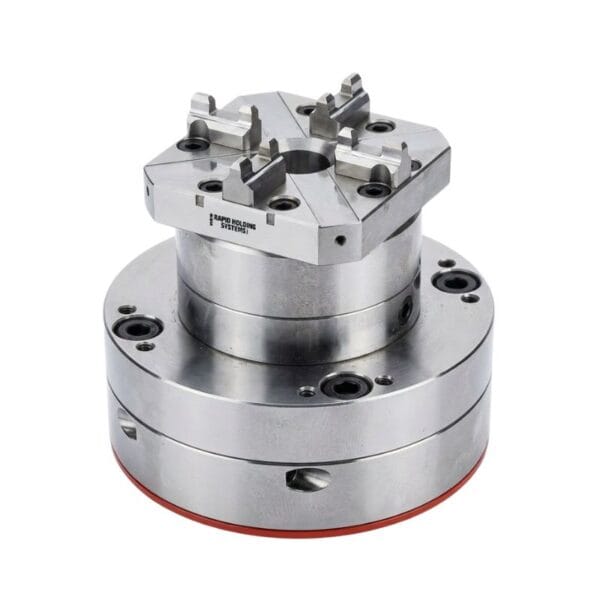

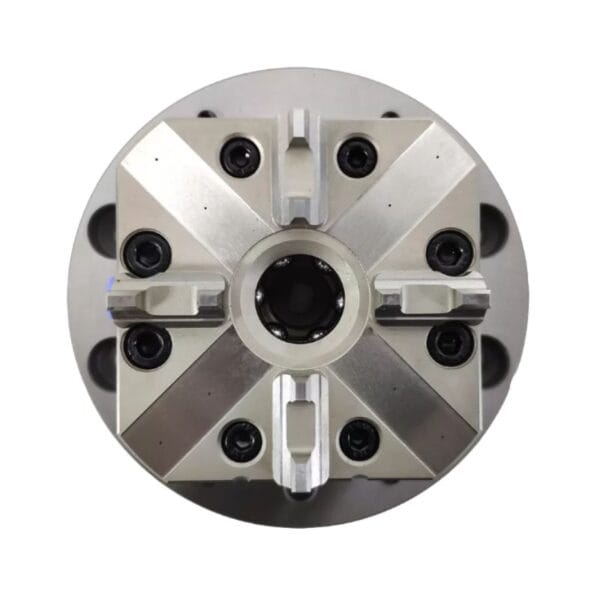

Erowa ER-007580 80mm Pneumatic Rapid action EDM Chuck. RHS 80mm EDM Pneumatic Chuck corresponds to ER-007580. It is equivalent to Rapid-action Chuck Automatic ER-007521 or Manual rapid-action chuck ER-007580. It applies to retrofit on EDM sinking machines, working with electrode holders. It is made of 440C stainless steel, well rust-resistant. Air pressure required 6 bar with self-cleaning function. Clamping force up to 60000N.
| SPECIFICATION | |

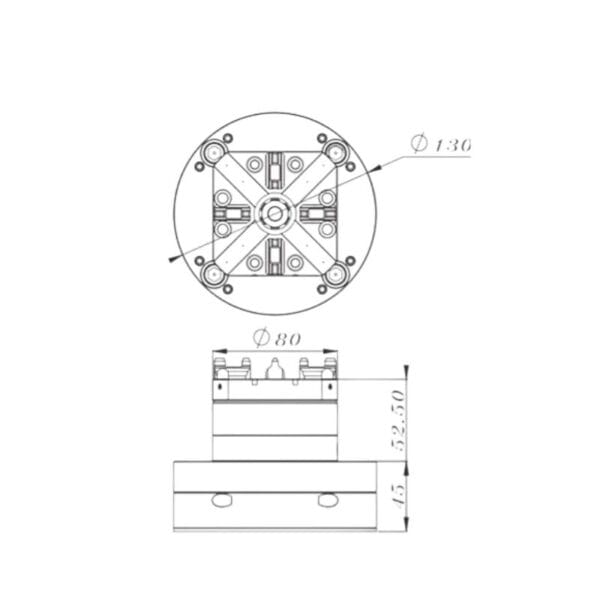

| SIZE | Φ 130X97.5mm |
| MATERIAL | NIPPON STAINLESS STEEL 57-60HRC |
| AIR PRESSURE REQUIRE | 6 BAR , WITH AIR CLEANING FUNCTION |
| FORCE POWER | 6000N |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 8 × 8 × 6 cm |
| Actuation Type | Pneumatic |
| System Compatibility | Erowa ITS |
