Zero point 5-Axis Self-Centering Vise 310×125 – PV125-125 Series
$2,700.00

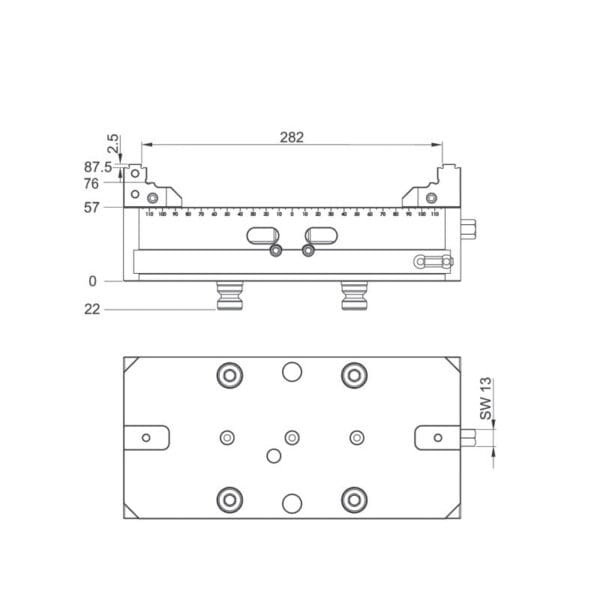

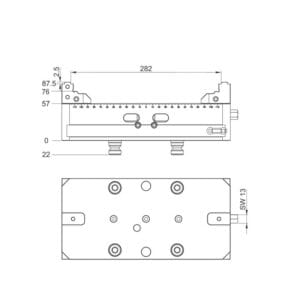

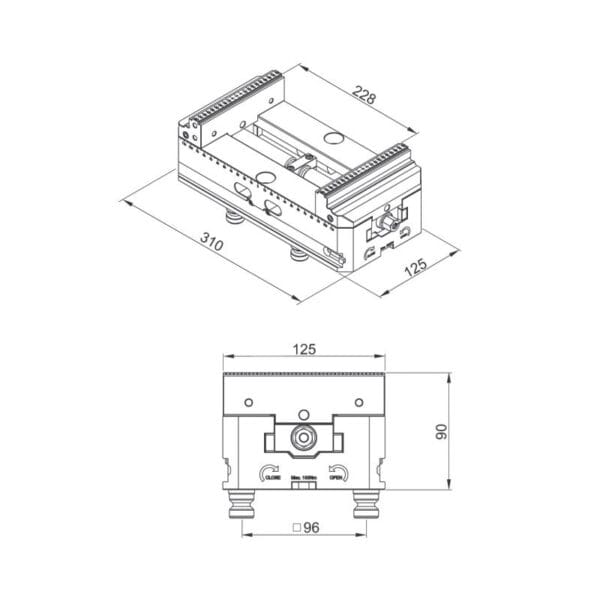

Size is 310x125mm, Height 90mm
-Clamping Range 0-282mm
-Quickly change the direction of the jaws and rotate 180¡ to increase the clamping range.
-Special angle lock mechanism, preventing workpiece lifting when locked.
-Clamping repeating accuracy within 0.005mm.
-Special swing 1.5¡ design on one side clamping jaw for better gripping when workpiece is non-parallel.
- Description
- Additional information
- Reviews (0)
Description
Zero point 5-Axis Self-Centering Vise 310×125
–Size is 310x125mm, Height 90mm
–Clamping Range 0 to 282 mm.
-Quickly change the direction of the jaws and rotate 180° to increase the clamping -range
-Special angle lock mechanism to prevent workpiece lifting when locked.
-special swing 1.5° design on one side clamping for better gripping when workpiece is non parallel.
| Specifications | |
| Body Length (mm) | 310 |
| Clamping range (mm) | 0 to 282 |
| Jaw width (mm) | 125 |
| Tightening Torque (Nm) | 100 |
| Clamping force (kN) | 16 |
| Centering accuracy (mm) | ±0.01 |
| Weight (kg) | 16.1 |
| Includes | clamping studs |
Additional information
| Weight | 16.1 kg |
|---|---|
| Dimensions | 15 × 12 × 10 cm |
| Material for Vises | Stainless Steel |
| Compatibility for vises | Universal, Zero-Point Bolts |
| Zero-Point Adaptable | 96mm |
