System 3R 3R-651.7E-S 54mm Pallet compatible Macro

0 out of 5
( There are no reviews yet. )

$28.00

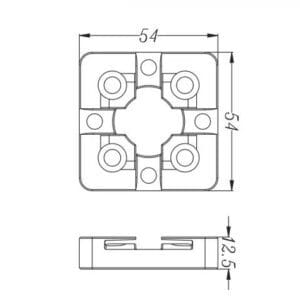

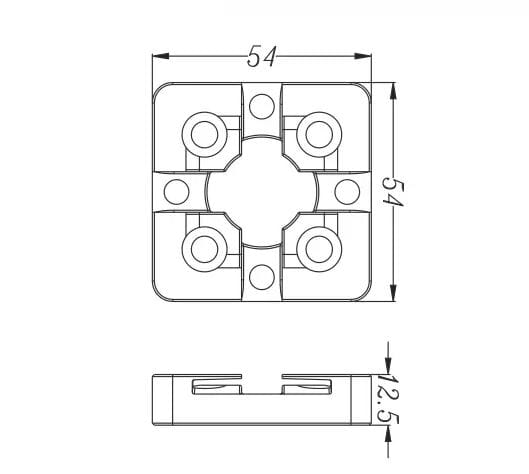

System 3R 3R-651.7E-S 54mm Pallet compatible Macro

Low-Cost 3R Pallet. Also compatible to3R-651.7E-XS. Hardened pallet for copper electrodes and workpieces.

Note: Must be mounted on the copper

blank/workpiece before it is locked in a chuck.

For graphite electrodes, spacer plate 3R-658.1E-S

is required. Adapted for automatic changing, Untreated side faces.

SKU: RHS-S5368-1
Ask for Quote
Ask for Quote
Save for later

Description

System 3R 3R-651.7E-S Pallet 54MM Macro

Low-Cost 3R Pallet. Also compatible to3R-651.7E-XS

SPECIFICATION

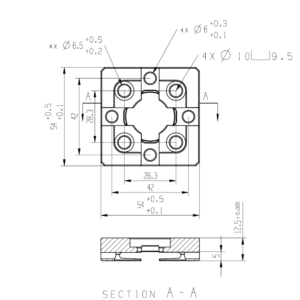

SIZE54X54 mm
VERSIONUNPLATED CAST PALLET
APPLICATIONCOPPER, GRAPHITE ELECTRODES AND WORKPIECES

Note, dowels are not JiG Ground, if you require Jig Ground dowels please contact us.

Additional information

Weight0.5 kg
Dimensions6 × 6 × 6 cm
Material

System Compatibility

System 3R MacroStandard
