System 3R 3R-651.7E-P Macro Compatible pallet 54mm Precision
$45.00
System 3R Pallet 3R-651.7E-P Macro Compatible 54mm.
Precision cast 3R-651.7E-P Macro compatible system 3r Pallet 54×54 mm comes with clearance holes for four fixing screws. Adapted for automatic changing.
– Rust-resistant.
– Flushing duct.
– Fixed index positions 4×90°.
– Parallel-ground top and bottom faces.
- Description
- Additional information
- Reviews (0)
Description
System 3R Pallet 3R-651.7E-P Macro Compatible 54mm.
Precision cast 3R-651.7E-P Macro compatible system 3r Pallet 54×54 mm comes with clearance holes for four fixing screws. Rapid Holding systems version 3R-651.7E-P pallet is adapted for automatic changing, Rust-resistant.
– Flushing duct.
– Fixed index positions 4×90°.
– Parallel-ground top and bottom faces.

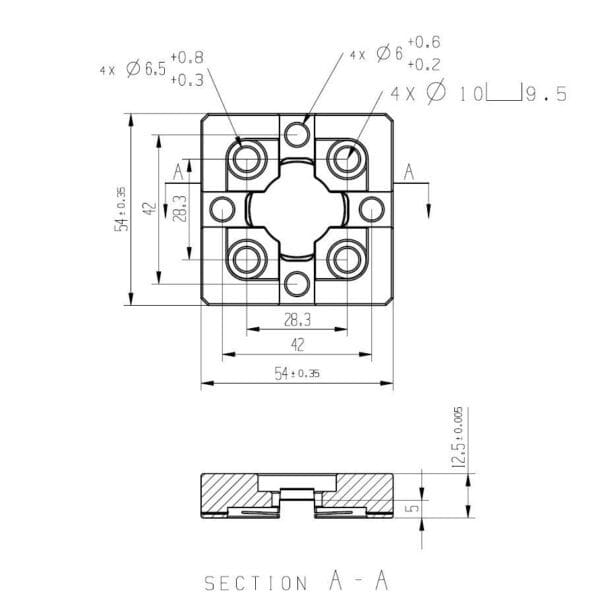

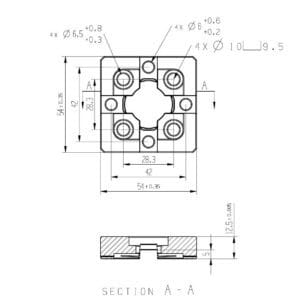

3R-651-7E-P
| SPECIFICATIONS | |
| SIZE | 54X54X12.5mm |
| EQUIVALENT | 3R-651-7E-P |
| MATERIAL | STAINLESS STEEL 420 40-44HRC |
Note: Must be mounted on the workpiece/fixture
before it is locked in a chuck.
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 5.4 × 5.4 × 1 cm |
| Material | |
| System Compatibility | System 3R MacroStandard |
