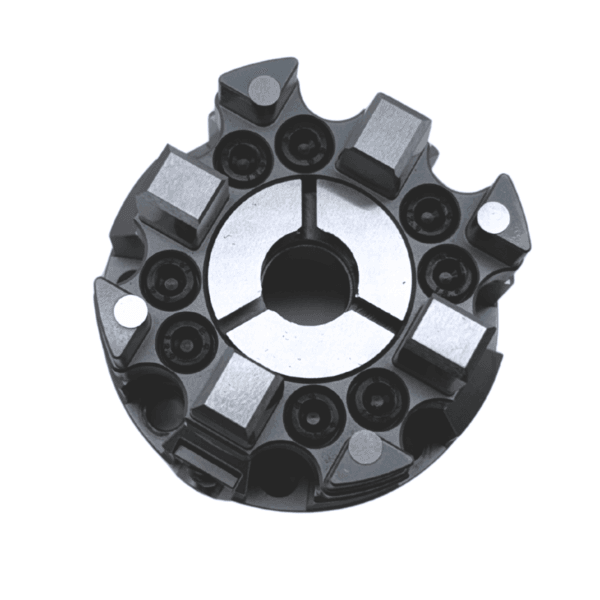

System 3R 3R-460.34 compatible Manual chuck MacroCombi
$2,875.00
The RHS-S460.34 is designed for precision workholding in Sinker EDM, Wire EDM, CNC machining, inspection fixtures, electrode manufacturing, and automation applications. Its manual locking mechanism provides secure clamping and excellent repeatability for accurate positioning of workpieces and electrodes.
- Description
- Additional information
- FAQs
- Reviews (0)
Description
The RHS-S460.34 Manual MacroCombi Chuck is a versatile manual workholding chuck designed to provide secure and repeatable positioning of MacroCombi electrodes, workpiece holders, and tooling fixtures. Its robust construction and precision-ground locating surfaces ensure reliable performance in demanding EDM, CNC machining, inspection, and automation environments.
The chuck can be mounted directly to machine spindles using compatible spindle adaptors, installed on machine tables, or integrated into custom fixtures. The manual locking mechanism provides strong clamping force while allowing quick tooling changes, reducing setup time and increasing machine utilization.
As part of the Rapid Holding Systems MacroCombi range, the RHS-S460.34 is fully interchangeable with OEM System 3R MacroCombi tooling, allowing users to expand or replace existing systems without modifications.
Key Features
- 100% compatible with System 3R® 3R-460.34
- Precision manual locking mechanism
- High repeatability for EDM and CNC applications
- Suitable for machine spindle, machine table, and fixture mounting
- Hardened and precision-ground components
- Quick setup and tooling changeover
- Durable construction for long service life
- Cost-effective alternative to OEM tooling
Typical Applications
- Sinker EDM
- Wire EDM setup fixtures
- CNC machining
- Electrode manufacturing
- Inspection and measuring fixtures
- Automated workholding systems
- Precision tool presetting
Technical Specifications
| Specification | Value |
|---|---|
| RHS Part Number | RHS-S460.34 |
| OEM Equivalent | System 3R 3R-460.34 |
| Product Type | Manual MacroCombi Chuck |
| Compatibility | System 3R MacroCombi System |
| Chuck Operation | Manual |
| Mounting Options | Machine spindle, machine table, fixture mounting |
| Clamping Method | Mechanical manual locking |
| Material | Hardened tool steel |
| Surface Finish | Precision ground |
| Weight | 1.8 kg (3.97 lbs) |
| Interchangeability | 100% compatible with OEM System 3R tooling |
| Application | EDM, CNC, Inspection, Automation |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 7 × 7 × 7 cm |
How can the RHS-S460.34 be mounted on my machine or fixture?
The RHS-S460.34 can be mounted directly to a machine spindle using compatible spindle adapters, installed on a machine table, or integrated into custom fixtures and tooling plates. This flexibility allows users to incorporate the chuck into a wide variety of EDM, CNC, and precision manufacturing setups while maintaining consistent positioning accuracy.
What applications is the RHS-S460.34 Manual MacroCombi Chuck designed for?
The RHS-S460.34 is designed for precision workholding in Sinker EDM, Wire EDM, CNC machining, inspection fixtures, electrode manufacturing, and automation applications. Its manual locking mechanism provides secure clamping and excellent repeatability for accurate positioning of workpieces and electrodes
Is the RHS-S460.34 Manual MacroCombi Chuck compatible with OEM System 3R MacroCombi tooling?
Yes. The RHS-S460.34 is 100% compatible with System 3R® 3R-460.34 and other MacroCombi tooling components. It can be used with existing OEM holders, drawbars, electrodes, and fixtures without modification, making it an ideal cost-effective replacement or expansion solution.
