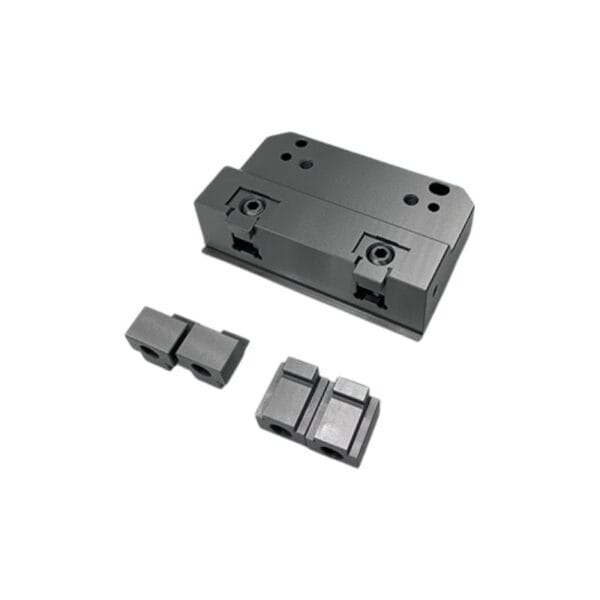

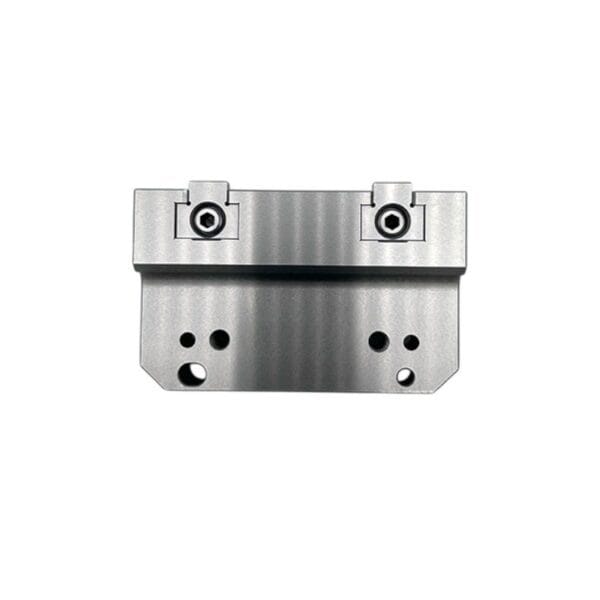

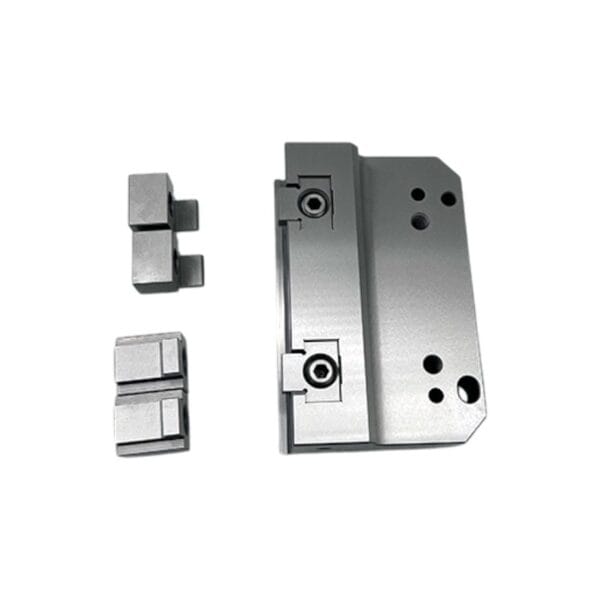

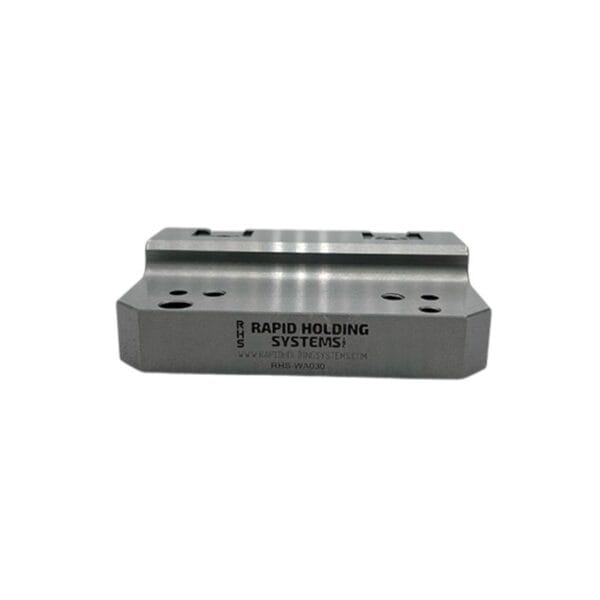

RHS Wire EDM Tooling Vise Palletset
$2,350.00
version: with fixed Z-lip and jaws attached. Application: Lateral clamping of workpieces of 0-150mm from the outside.To be fitted to fix holders or pendulum holders 3D. options: Prism holders and BeamVise clamping elements.
- Description
- Additional information
- Reviews (0)
Description
version: with fixed Z-lip and jaws attached. Application: Lateral clamping of workpieces of 0-150mm from the outside.To be fitted to fix holders or pendulum holders 3D. options: Prism holders and BeamVise clamping elements.
Additional information

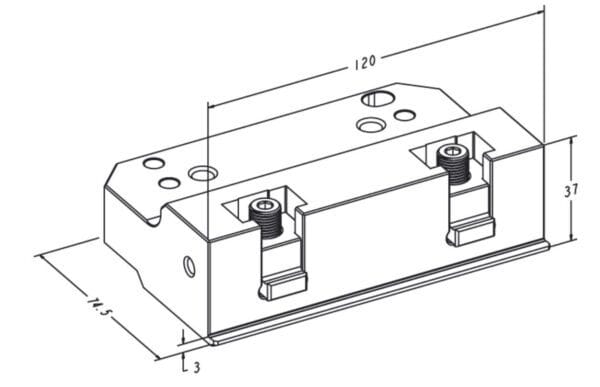

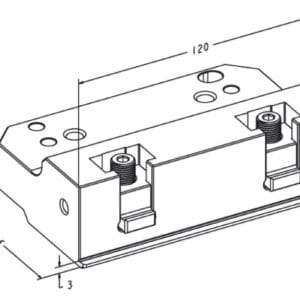

| Weight | 1.8 kg |
|---|---|
| Dimensions | 10 × 8 × 8 cm |
| Compatible Workpiece Shape | Rectangle, Square |
| System Compatibility | Universal |
| Maximum Clamping Width (mm) | 150 |
| Maximum Workpiece Weight (Kg) | 10 |
| Tightening Torque (Nm) | 10 |
| Material |
