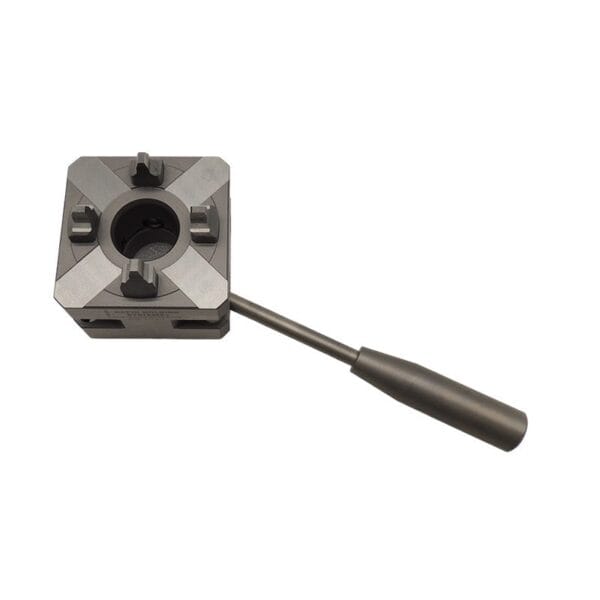

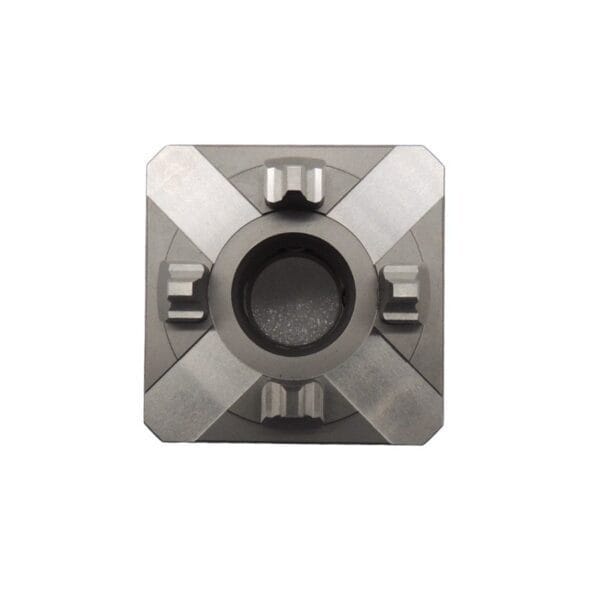

Erowa ER-034387 Compatible Quick Chuck 50
$510.00
Erowa Quick Chuck ER-034387 Compatible.
Erowa ER-034387 Quick chuck 50 Compatible is System size 50, manual, corrosion‑resistant.

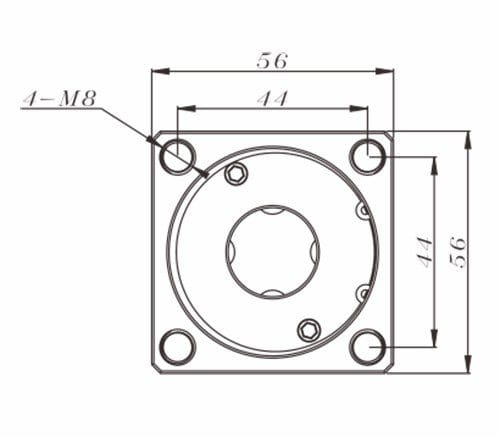

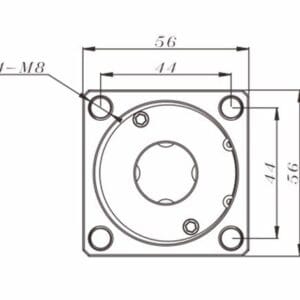

Attachment: 4 x M8 from the rear or 4 x M6 stud bolts with nuts.
Application: On EDM/WEDM centers for light milling and grinding work. Max. revolutions on rotating axes 2000 rpm.
Note: Clamping power up to 4000 N.
- Description
- Additional information
- Reviews (2)
Description
Erowa ER-034387 Compatible Quick Chuck 50 . Premium Erowa ER-034387 Quick chuck 50 by Rapid Holding Systems. Rapid Holding Seamlessly Integrates With Your Existing Erowa ITS ER-034387 Quick chuck 50 System.
| SPECIFICATION | |

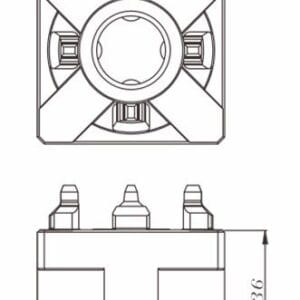

| SIZE | 56X56X36mm |
| MATERIAL | NIPPON STAINLESS STEEL 57-60HRC |
| FORCE POWER | 4000N |
| INCLUDED | STAINLESS STEEL HANDLE x 1pcs |
High Quality 100% Compatible Erowa Tooling. Erowa Chucks, holders, spigots, pallets, plates, gauging devices, and self-centering devices. Rapid Holding Systems provide Ultimate Engineered Erowa Tooling in the North America. Our online Erowa Collection at Rapid Holding Systems makes it easier for you to find the perfect fit for your EDM manufacturing needs. We provide you Perfect Erowa Chucks so as to help you unlock the full potential of your machines.
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 8 × 8 × 6 cm |
| Actuation Type | Manual |
| System Compatibility | Erowa ITS |
