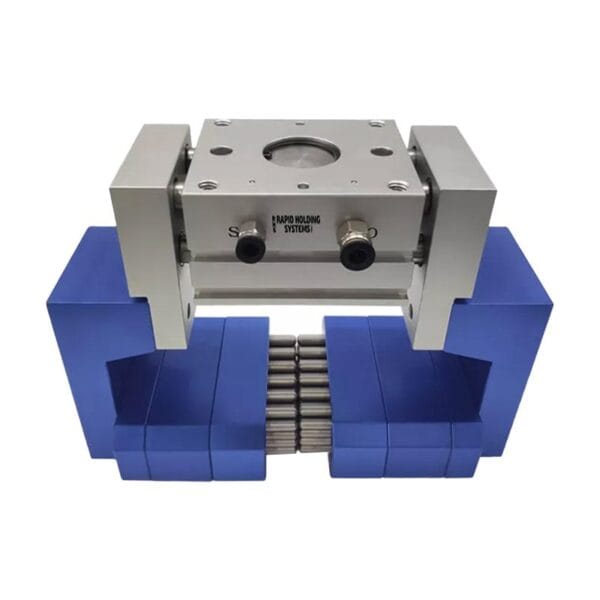

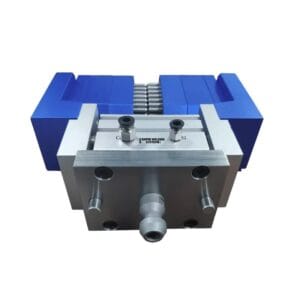

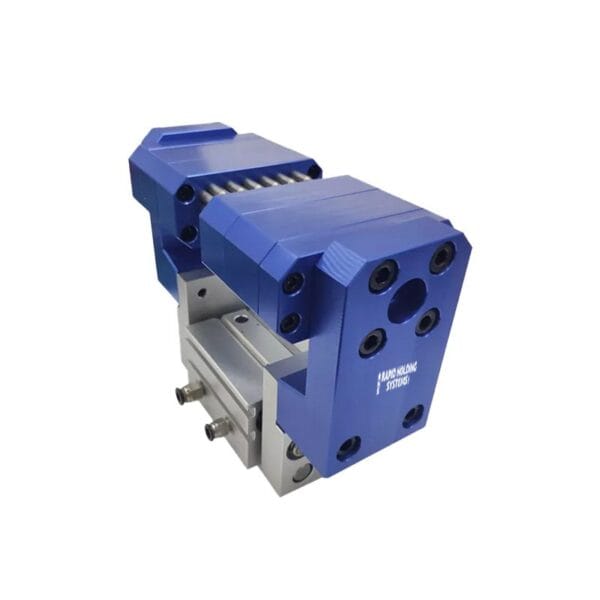

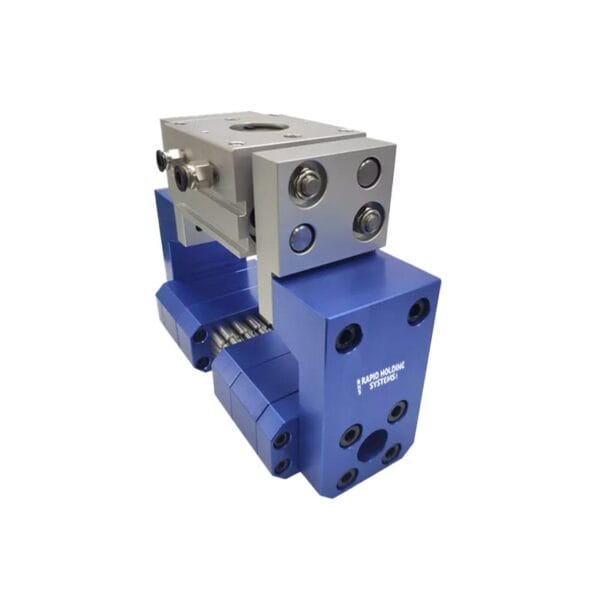

Flexible Tooling Gripper for Robot
$4,950.00
RHS Robot finger Flexible tool
RHS Flexible Tooling Gripper for Robot is compatible with the EROWA EasyChange system. It comes with a gripper link similar to the ER-036347, allowing it to couple seamlessly with the EROWA Gripper RCS. This gripper consists of two modules of a flexible tooling unit, where each pin on the unit cushions itself to support the workpiece. The pins of every module adjust to any shape, ensuring workpieces are held or clamped in position simply, quickly, and precisely. Ideal for clamping irregularly shaped workpieces, the gripper efficiently moves them from one position to another. Enhanced by Rapid Holding Systems tools, this versatile gripper meets diverse industrial needs.
contact us for more information and CAD model.
- Description
- Additional information
- Reviews (0)
Description
RHS Robot finger Flexible tool
RHS Flexible Tooling Gripper for Robot is compatible with the EROWA EasyChange system. It comes with a gripper link similar to the ER-036347, allowing it to couple seamlessly with the EROWA Gripper RCS. This gripper consists of two modules of a flexible tooling unit, where each pin on the unit cushions itself to support the workpiece. The pins of every module adjust to any shape, ensuring workpieces are held or clamped in position simply, quickly, and precisely. Ideal for clamping irregularly shaped workpieces, the gripper efficiently moves them from one position to another. Enhanced by Rapid Holding Systems tools, this versatile gripper meets diverse industrial needs.
contact us for more information and CAD model.
| Specification | Description |

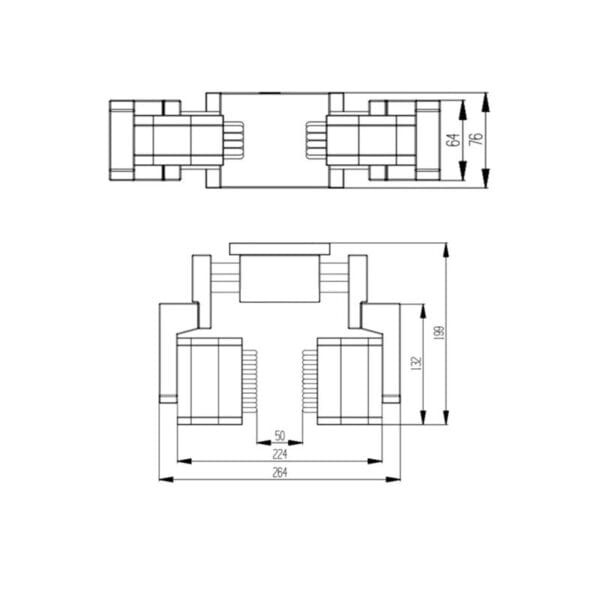

| Size | 264x76X199mm |
| Material | High-quality steel, 48-52HRC |
| Pins diameter | 5mm |
| Stroke of cylinder | 100mm |
| Max loading weight | 80kg |
| Pressure | 6kg |
| Compatibility | EROWA EasyChange system |
| Gripper Link | Similar to ER-036347 |
| Coupling | EROWA Gripper RCS |
| Modules | 2 modules of flexible tooling unit |
| Pin Cushioning | Each pin cushions itself to support the workpiece |
| Pin Adjustment | Adjusts to every shape |
| Clamping Capability | Irregularly shaped workpieces |
| Movement | Moves workpieces from one position to another |
| Operation | Simple, quick, and precise |
Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 7 × 7 × 7 cm |
