FCS compatible Pull down Clamping Module 60, double
$647.90
FCS compatible Pull down Clamping Module 60, double. Rapid Holding Systems Pull Clamping System is a workholding system for 5-axis machining with precise locating repeatability of 0.005mm. Workpiece is clamped by pulling in clamping screws.
Pull-down clamping allows clear tool access and enables machining from five sides, leading to better machining accuracy with a single setup.
This simple mechanical system provides easy & precise positioning and clamping for 5-axis machining.
- Description
- Additional information
- Reviews (0)
Description
FCS compatible Pull down Clamping Module 60, double. Rapid Holding Systems Pull Clamping System is a workholding system for 5-axis machining with precise locating repeatability of 0.005mm. Workpiece is clamped by pulling in clamping screws.
Pull-down clamping allows clear tool access and enables machining from five sides, leading to better machining accuracy with a single setup.
This simple mechanical system provides easy & precise positioning and clamping for 5-axis machining.

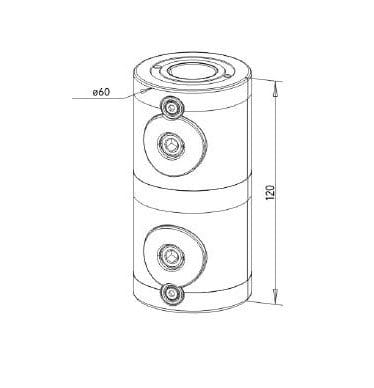

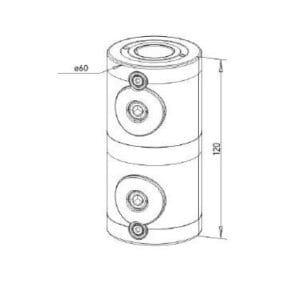

| size | ⌀60X120mm |
| Material | Chrome steel |
| Clamping Power | 12000N |
| Hardness | 46-60HRC |
| Max Torque | 30NM |
| Repeatability | ±0.005mm |
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 18 × 16 × 10 cm |
