Erowa MTS ER-033703 Compatible Pallet 240 x 400
$1,100.00
Erowa MTS ER-033703 Compatible Pallet 240 x 400
Erowa ER-033703 Compatible MTS Pallet 240 x 400 mm. Rapid Holding Systems MTS Pallet 240 x 400 2 head pallet size is compatible with Erowa MTS system, pallet chucking spigot distance is 200 mm which is use with MTS 2 head chuck. User can clamp work piece, vise and gauges on the pallet for machining or checking.
- Description
- Additional information
- Reviews (0)
Description
Erowa MTS ER-033703 Compatible Pallet 240 x 400mm. Rapid Holding Systems MTS Pallet 240 x 400 2 head pallet size is compatible with EROWA ER-033703 MTS system, pallet chucking spigot distance is 200mm which is use with MTS 2 head chuck. Erowa ER-033703 can be used for clamp workpiece, vise and gauges on the pallet for machining or checking.

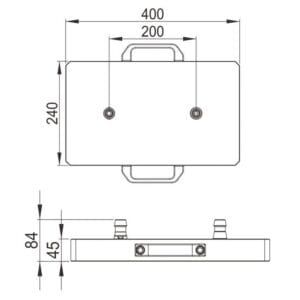

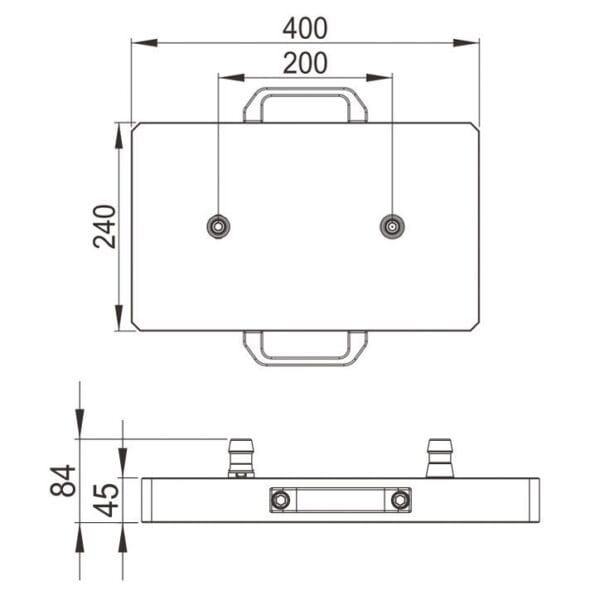

| SPECIFICATION | |
| SIZE | 240 x 400 |
| MATERIAL | NIPPON STAINLESS STEEL 57-60HRC, ALUMINIUM |
| EQUIVALENT | ER-033703. |
| Application | To clamp workpieces, vises and gauges |
| ACCESSORIES | CENTERING SPIGOT ER-03380 and CHUCKING SPIGOT ER-039200. |
High Quality 100% Compatible Erowa Tooling. Erowa Chucks, holders, spigots, pallets, plates, gauging devices, and self-centering devices. Rapid Holding systems provide Ultimate Engineered Erowa Tooling in the North America. Our online Erowa Collection at Rapid Holding Systems makes it easier for you to find the perfect fit for your EDM manufacturing needs. We provide you Perfect Erowa Parts so as to help you unlock the full potential of your machines.
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 6 × 6 × 6 cm |
| Material | |
| System Compatibility | Erowa MTS |
