Erowa sensor ER-008638 ER-010562 compatible D2 Spring Loaded Centering Sensor 2mm Tip
$1,195.00
Erowa ER-008638 ER-010562 compatible D2 Spring Loaded Centering Sensor 2mm Tip
EROWA ER-008638 ER-010562 D2 SPRING CENTERING SENSOR 2MM for the Automatic measurement of workpieces in CNC EDM sinking centers. Spring Loaded Centering Sensor is compatible with EROWA ITS System. It is equivalent to ER-008638 & ER-010562. Holder with spring sensing pin and tungsten carbide ball. It applies to automatically measure specification of workpieces in CNC EDM sinking centers. Repetition accuracy: X,Y,Z 0.002mm
- Description
- Additional information
- Reviews (0)
Description

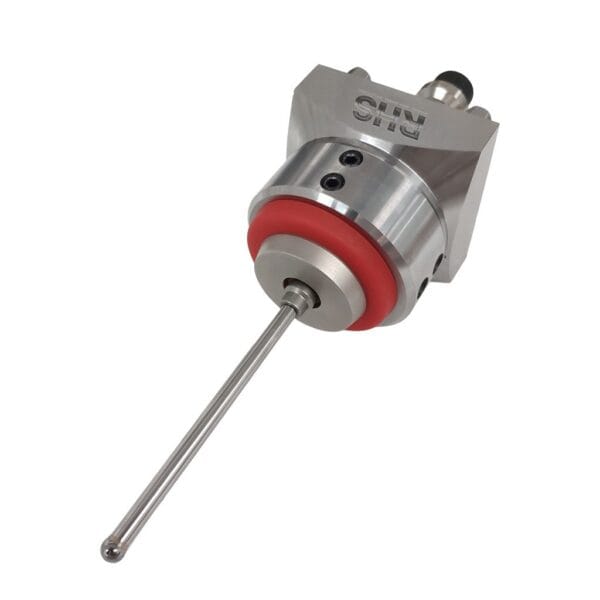

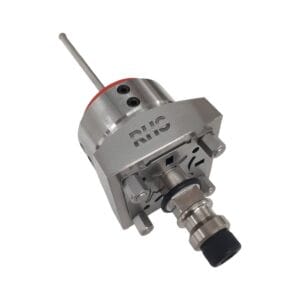

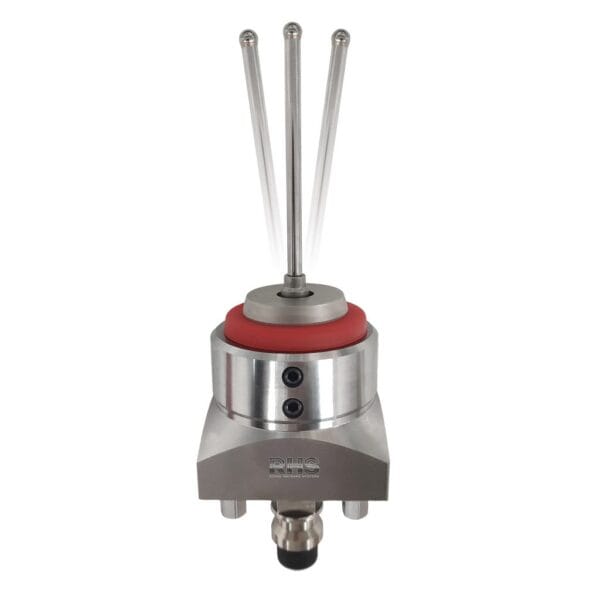

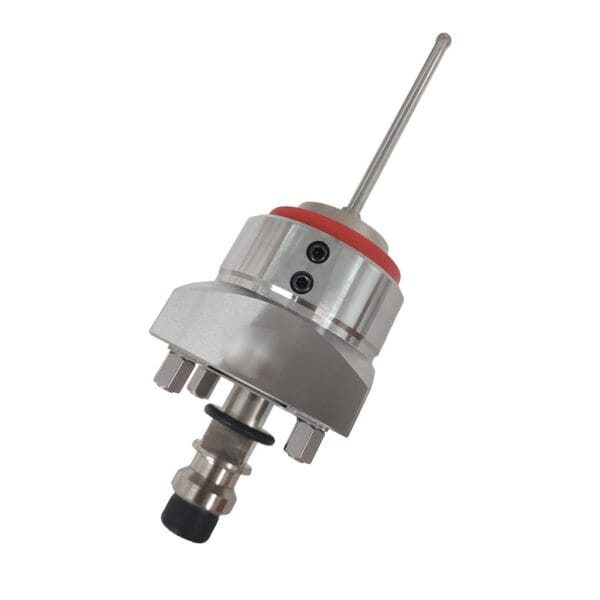

Erowa ER-008638 ER-010562 D2 Spring Loaded Centering Sensor 2mm Tip
EROWA ER-008638 ER-010562 D2 SPRING CENTERING SENSOR 2MM. It is useful because of its Automatic measurement of workpieces in CNC EDM sinking centers. Spring Load Centering Sensor is highly accurate as fully compatible with EROWA ITS System but 50% low in cost. It is equivalent to ER-008638 and ER-010562. Holder with spring loaded sensing pin and tungsten carbide ball comes with 1 pc spigot. Repetition accuracy: X,Y,Z 0.002mm. Overrun protection: X, Y, Z 1 mm. comes with 1 pc spigot. Also available extra replacement tips (note:to be ordered separately)
| SPECIFICATION | |

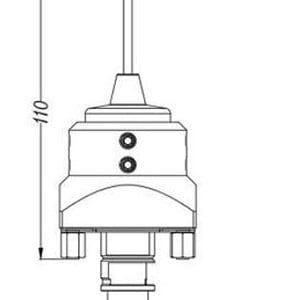

| SIZE | 56X56X110mm |
| MATERIAL | STAINLESS STEEL 420 32-36HRC |
| TOLERENCE | CONCENTRICITY TOLERANCE ± 0.005mm |
| VERSION | SPRING LOADED |
| TIP DIAMETER | 2MM |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Ball Diameter (mm) | 2 |
| Deflection Type | 3-Axis Deflecting |
| System Compatibility | Erowa ITS |
