Erowa sensor ER-008638 ER-010562 compatible D4 Centering Sensor Stationary
$510.00
Erowa ER-008638 ER-010562 compatible D4 Centering Sensor Stationary 4mm tip
EROWA ER-008638 ER-010562 D4 SPRING CENTERING SENSOR 4MM. Equivalent to ER-008638 and ER-010562. Holder with stationary sensing pin and tungsten carbide ball comes with 1 pc spigot. Repetition accuracy: X,Y,Z 0.002mm. Overrun protection: X, Y, Z 1 mm.
- Description
- Additional information
- Reviews (0)
Description
Erowa ER-008638 ER-010562 compatible D4 Centering Sensor Stationary 4mm tip
EROWA ER-008638 ER-010562 D4 SPRING CENTERING SENSOR 4MM. It is useful because of its Automatic measurement of workpieces in CNC EDM sinking centers. Stationary tip Centering Sensor is highly accurate as fully compatible with EROWA ITS System but 50% low in cost. It is equivalent to ER-008638 and ER-010562. Holder with stationary sensing pin and tungsten carbide ball comes with 1 pc spigot. Repetition accuracy: X,Y,Z 0.002mm. Overrun protection: X, Y, Z 1 mm. comes with 1 pc spigot. Also available extra replacement tips (note:Extra tip to be ordered separately)

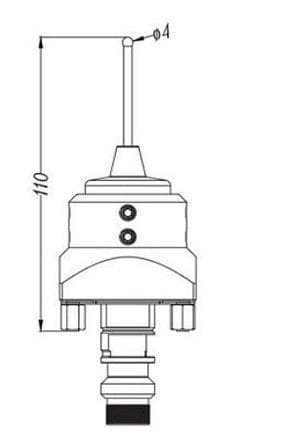

| SPECIFICATION | |
| SIZE | 51X51X110mm |
| MATERIAL | STAINLESS STEEL 420 32-36HRC |
| TOLERENCE | CONCENTRICITY TOLERANCE ± 0.002mm |
| VERSION | STATIONARY TIP |
| BALL DIA | 4MM |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 7 × 7 × 5 cm |
| Ball Diameter (mm) | 4 |
| Deflection Type | Stationary |
| System Compatibility | Erowa ITS |
