ER-078474 Erowa OEM 3 Jaw Concentric Chuck Manual ø 140mm on 148G Pallet
Get a Quote
Version

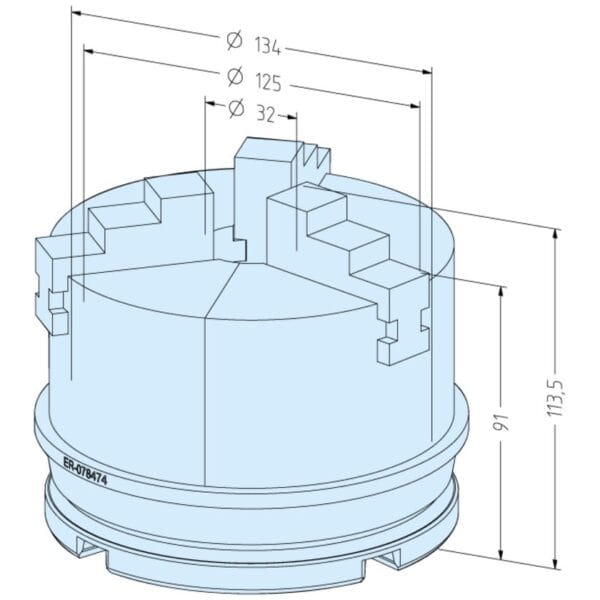

Manual 3-jaw concentric chuck ø 125 mm. Central clamping area 3-53mm. Body made of cast metal. High degree of concentricity according to DIN 6386. Includes 3 hardened drilling jaws (stepped on the outside), 3 hardened turning jaws (stepped on the inside), 1 spanner.
Note
Max. speed 4000 min-¹.
Application
As adapter chuck in the die-plate chuck PM128 II AirDock.
- Description
- Additional information
- Reviews (0)
Description
Version
Manual 3-jaw concentric chuck ø 125 mm. Central clamping area 3-53mm. Body made of cast metal. High degree of concentricity according to DIN 6386. Includes 3 hardened drilling jaws (stepped on the outside), 3 hardened turning jaws (stepped on the inside), 1 spanner.
Note
Max. speed 4000 min-¹.
Application
As adapter chuck in the die-plate chuck PM128 II AirDock.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 18 × 10 × 8 cm |
