ER-068697 Erowa OEM 3 Jaw Concentric Chuck Manual ø 140 on 148G Pallet
Get a Quote
Version

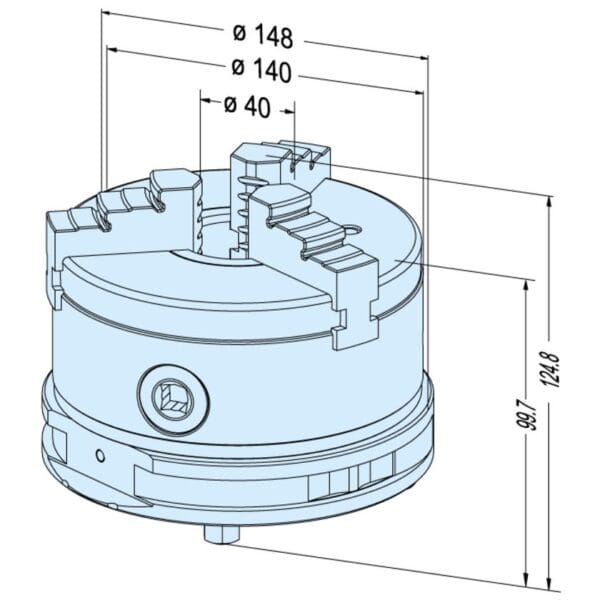

Manually operated three-jaw chuck ø140mm. Central clamping range 3-53mm. Body made of steel. High concentric accuracy according to DIN 6386. Fitted to pallet ø 148 G. Including 3 hardened drilling jaws (outward stepped), 3 hardened turning jaws (inward stepped) and 1 wrench.
Please note
Max. speed 5,000 min-¹.
Application
In combination with EROWA chucks on lathes, round tables, dividing heads, etc.
Spare parts
Block jaws, soft, for three-jaw chuck, set of 3, size 140mm.
- Description
- Additional information
- Reviews (0)
Description
Version
Manually operated three-jaw chuck ø140mm. Central clamping range 3-53mm. Body made of steel. High concentric accuracy according to DIN 6386. Fitted to pallet ø 148 G. Including 3 hardened drilling jaws (outward stepped), 3 hardened turning jaws (inward stepped) and 1 wrench.
Please note
Max. speed 5,000 min-¹.
Application
In combination with EROWA chucks on lathes, round tables, dividing heads, etc.
Spare parts
Block jaws, soft, for three-jaw chuck, set of 3, size 140mm.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 18 × 10 × 8 cm |
