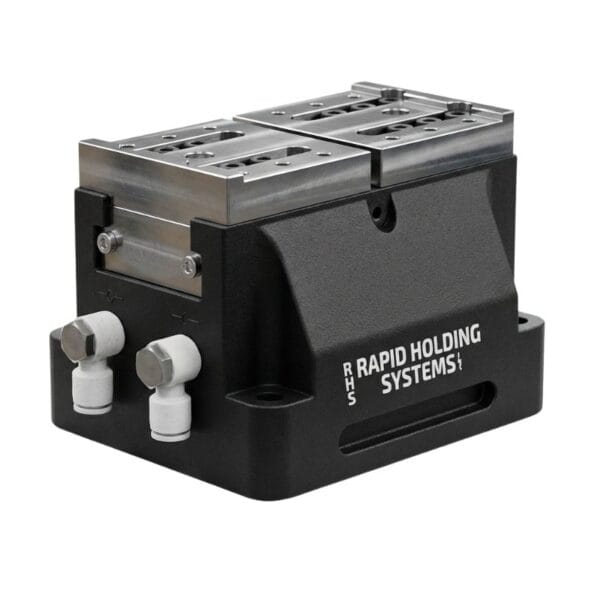

Automatic Pneumatic Self-Centering Vise
$2,200.00
The RHS-PJ08000 Automatic Pneumatic Self-Centering Vise delivers the precision and automation power modern CNC and EDM setups demand.
With a repeatability of ± 0.01 mm and a fully sealed body to block chips and coolant, this vise ensures clean, reliable performance in unattended or robotic machining environments.
Its compact 150 mm base supports a wide range of jaw combinations, allowing you to choose between standard, soft-top, or direct-mount jaws depending on part geometry.
Perfect for 5-axis machining, automation cells, and high-precision EDM fixtures.
The RHS-PJ08000 supports multiple jaw configurations for versatile part sizes — from soft jaws for delicate work to hardened jaws for high-grip operations.
- Description
- Additional information
- Reviews (0)
Description
Boost your automation precision with the RHS-PJ08000 Automatic Pneumatic Self-Centering Vise.
Built for modern CNC and EDM automation, this vise delivers micron-level repeatability (±0.01 mm) and fully sealed performance against coolant, chips, and debris.
Its compact, rigid body and balanced clamping force make it ideal for 5-axis machining and unattended robotic loading setups.
The RHS-PJ08000 supports multiple jaw configurations for versatile part sizes — from soft jaws for delicate work to hardened jaws for high-grip operations.
| Specification | Details |
|---|---|
| RHS Part Number | RHS-PJ08000 |
| Type | Automatic Pneumatic Self-Centering Vise |
| Stroke | 5 mm |
| Repeatability | ±0.01 mm |
| Actuation | Pneumatic (Hydraulic version optional) |

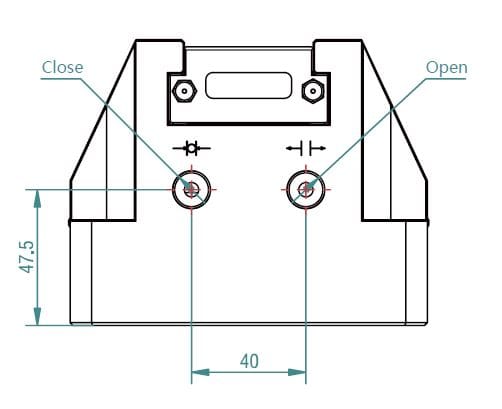

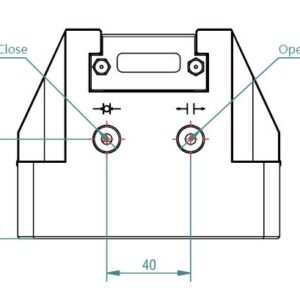

| Power Feed | Side or bottom feed |
| Material | Hardened and ground alloy steel |

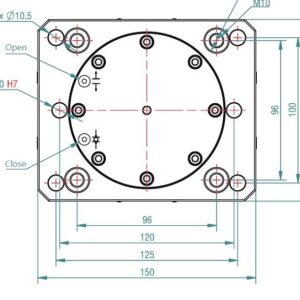

| Mounting Interface | 150 × 126 mm with Ø10.5 mm holes |
| Application | EDM, CNC, and automated machining |
| Compatible Jaw Sets | RHS-PJ08001 / RHS-PJ08002 / RHS-PJ08003 / RHS-PJ08004 |
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 7 × 7 × 7 cm |
Be the first to review “Automatic Pneumatic Self-Centering Vise”
You must be logged in to post a review.
Reviews
There are no reviews yet.
