Wire EDM Stainless Steel Bench Vise 100mm RHS-W5983-B
$1,090.00
RHS Wire EDM Stainless Steel Bench Vise
Adjustable wire EDM machine vise, camping size up to 150mm.
using on wire EDM machine/Tooling, such as Sodick, Makino, GF Agie charmilles wire EDM machine,
accuracy: 0.005mm/100mm.
- Description
- Additional information
- Reviews (1)
Description
RHS Wire EDM Stainless Steel Bench Vise
Adjustable wire EDM machine vise, camping size up to 150mm, 170mm vise length.
using on wire EDM machine/Tooling, such as Sodick, Makino, GF Agie charmilles wire EDM machine,
accuracy: 0.005mm/100mm.
| SPECIFICATION | |
| clamp size: | 0-150mm |
| Material | stainless steel |
| Accuracy: | 0.005mm/100mm |
| Accessories | T hexa wrench (1pc) |
| Application | Mount On WEDM machine suitable for small parts |

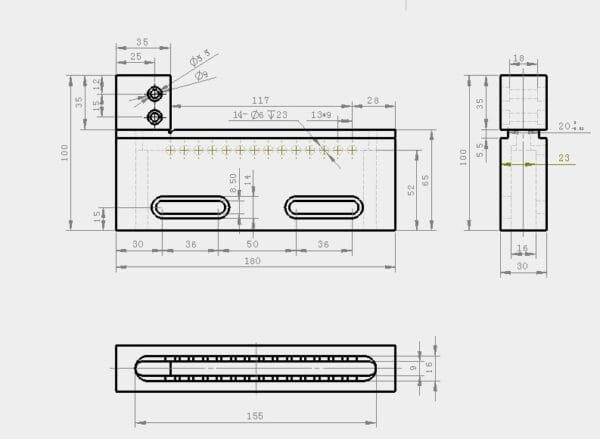

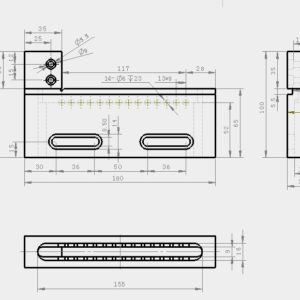

All Models:
| Model number | A(mm) | h(mm) | H(mm) | W(mm) | L(mm) |
| RHS-W5983-A | 31.5 | 30 | 85 | 50 | 120 |
| RHS-W5983-B | 32 | 35 | 100 | 100 | 226 |
| RHS-W5983-C | 32 | 35 | 100 | 150 | 226 |
| RHS-W5983 | 35.5 | 40 | 100 | 214 | 300 |
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 10 × 10 × 7 cm |
| Compatible Workpiece Shape | Rectangle, Square |
| System Compatibility | Universal |
| Maximum Clamping Width (mm) | 150 |
| Maximum Workpiece Weight (Kg) | 20 |
| Tightening Torque (Nm) | 7 |
| Material |
