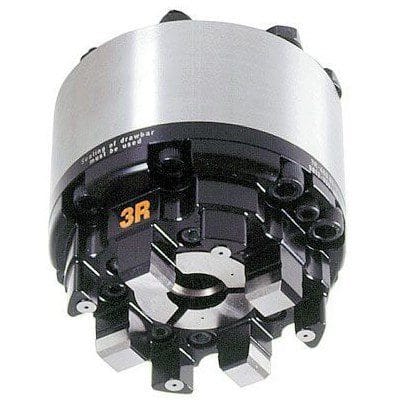

System 3R OEM 3R-460.86-2 Pneumatic chuck MacroCombi

Description

System 3R OEM 3R-460.86-2 Pneumatic chuck MacroCombi

System 3R OEM 3R-460.86-2 Pneumatic chuck MacroCombi
Pneumatic chucks for mounting on the machine
spindle. All X/Y/Z references in hardened and
ground steel. Note: When ordering state machine
make and type.
– Blowing-clean Z-references.
– Drawbar, Macro holder 3R-405.16.
– Drawbar, MacroJunior holder 3R-405.11.
– Adapted for automatic changing.
– Four M6 clearance holes, Ø45 mm, and four M5
clearance holes, 63×26 mm.
– Required air pressure 6±1 bar.
– Flushing connection
– Weight 1.9 kg.
