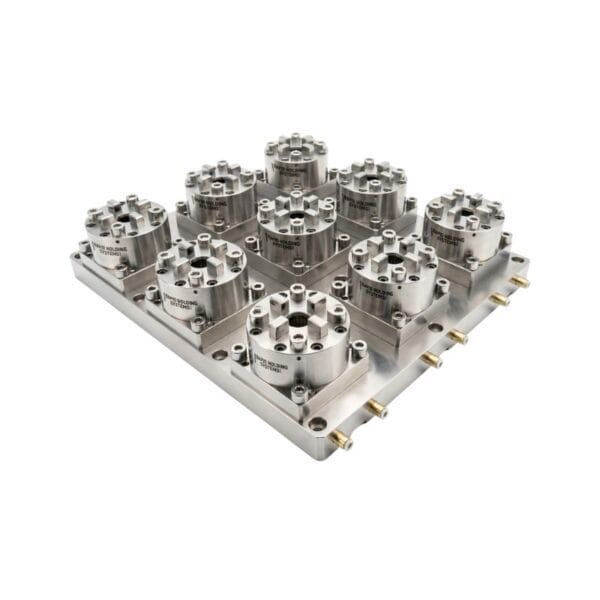

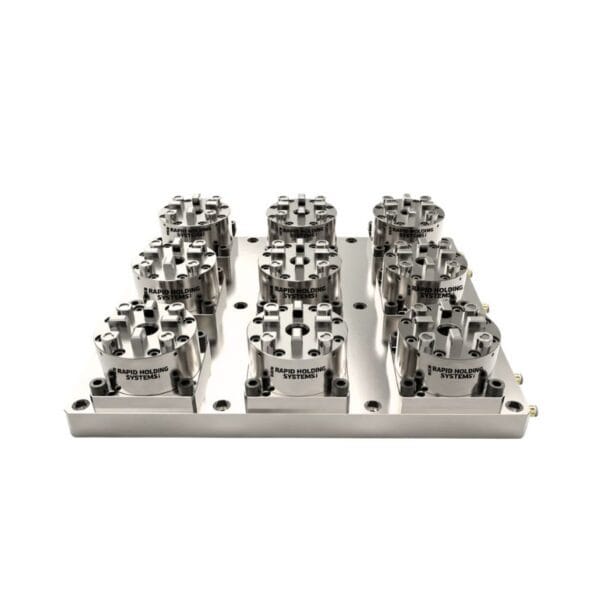

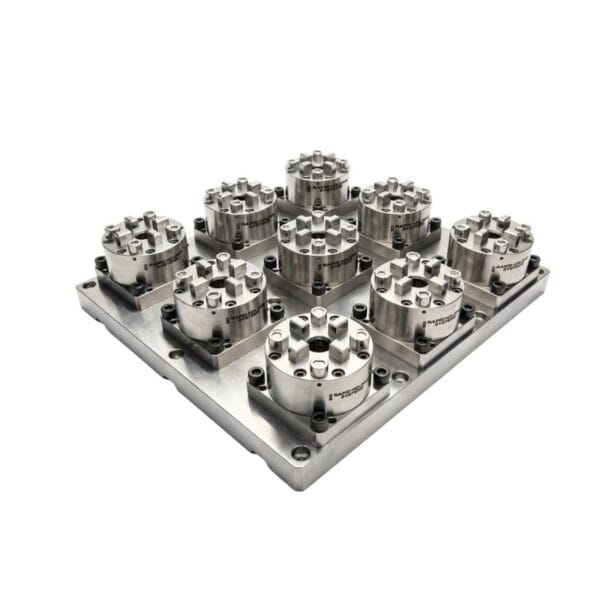

System 3R Compatible 9 in 1 CNC Pneumatic Chuck
$15,000.00
System 3R Compatible 9 in 1 CNC Pneumatic Chuck. Quality System 3r Tooling RHS Brand 9 in 1 CNC Pneumatic Chuck is used to Position and fix work piece for CNC lathe and 9 chucks are controlled by 1 switch.
Specifications:

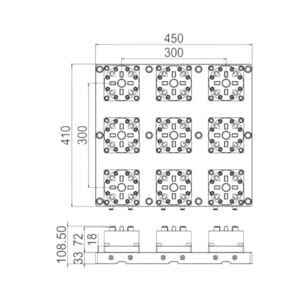

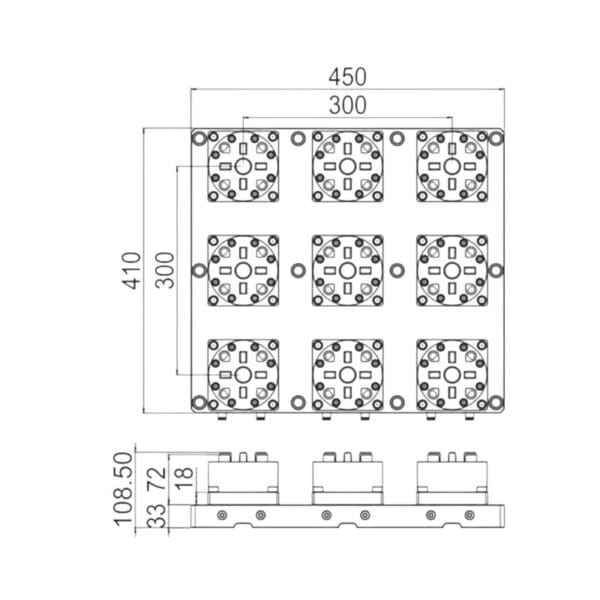

| Product Size | 410x450x108.5mm |
| Material | Nippon Stainless Steel |
| Force Power | 10000 N |
| Air Pressure Requirement | 6 Bar |
| Switch | 9 chucks control by 3 switches |
| Application | Position and fix work piece for CNC lathe |
- Description
- Additional information
- Reviews (0)
Description
System 3R Compatible 9 in 1 CNC Pneumatic Chuck. Quality System 3r Tooling RHS Brand 9 in 1 CNC Pneumatic Chuck is used to Position and fix work piece for CNC lathe and 9 chucks are controlled by 1 switch.
Additional information
| Weight | 22 kg |
|---|---|
| Dimensions | 20 × 20 × 15 cm |
| Actuation Type | Pneumatic |
| System Compatibility | System 3R MacroStandard |
