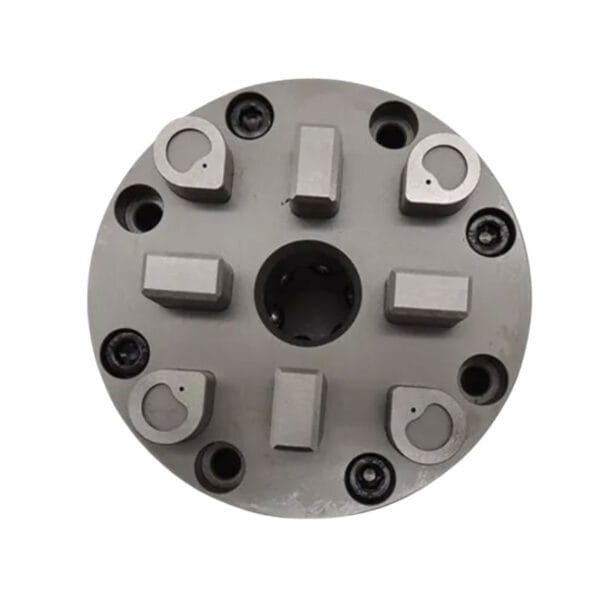

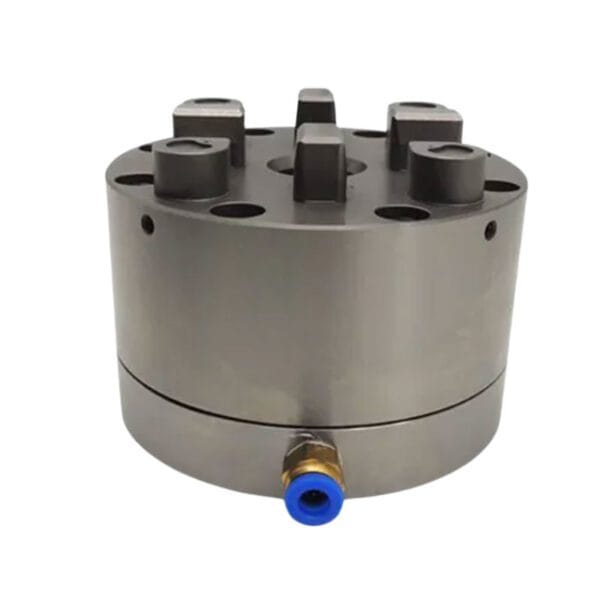

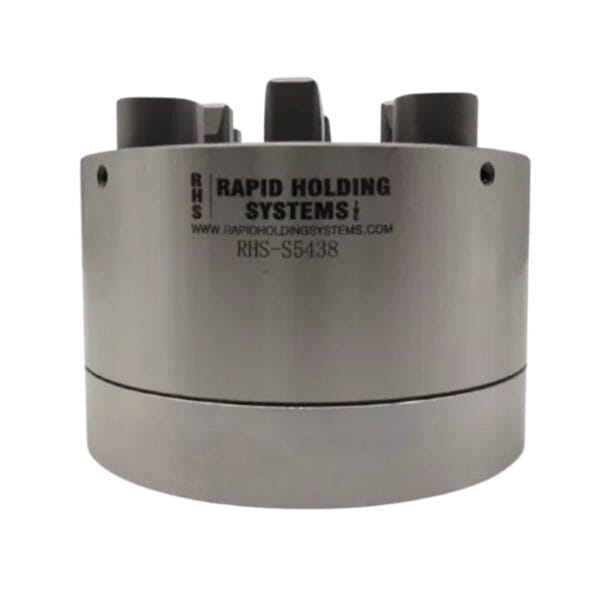

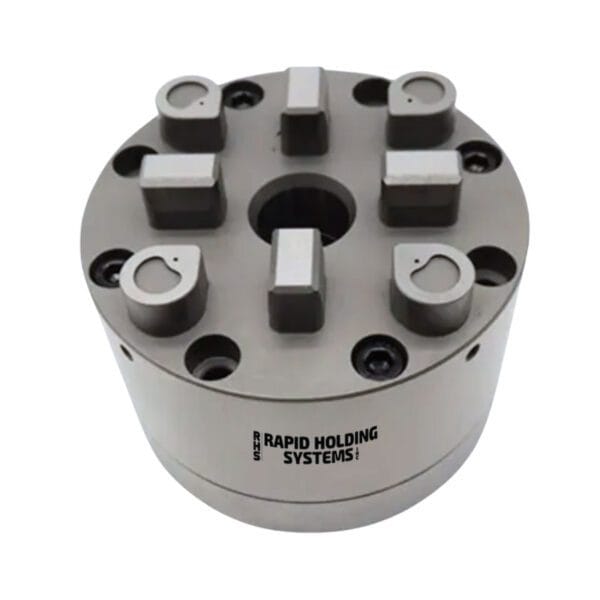

System 3R Compatible 3R-600.14-30 Macro Chuck Pneumatic Mount
$1,837.00
3R-600.14-30 Compatible Pneumatic MacroStandard
System 3R Compatible 3R-600.14-30 Macro Chuck Pneumatic Mount. Quality System 3r Tooling RHS Brand 3R-600.14-30 Macro Chuck Pneumatic Mount for permanent mounting on the machine table. Required drawbar 3R-605.2. Required air pressure 6±1 bar.
- Description
- Additional information
- Reviews (0)
Description
System 3R Compatible 3R-600.14-30 Macro Chuck Pneumatic Mount.
Quality System 3r Tooling RHS Brand 3R-600.14-30 Macro Chuck Pneumatic Mount.
| SPECIFICATION | |

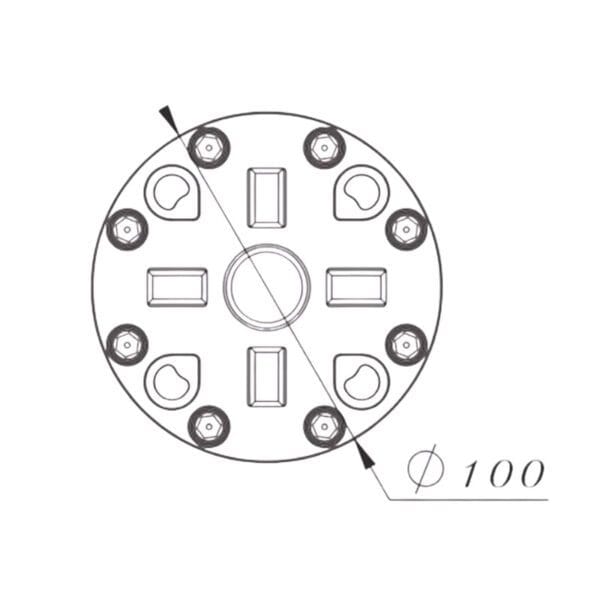

| SIZE | 35*100 |
| REQUIRED DRAWBAR | 3R-605.2 |
| MATERIAL | NIPPON STAINLESS STEEL 57-60HRC |
| MIN AIR PRESSURE | 6 BAR |
| INDEX POSITION | 4*90 DEGREES |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 10 × 10 × 7 cm |
| Actuation Type | Manual |
| System Compatibility | System 3R MacroStandard |
