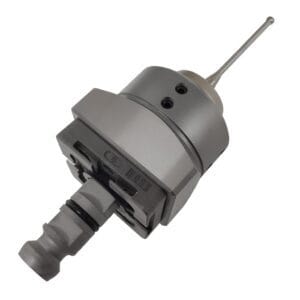

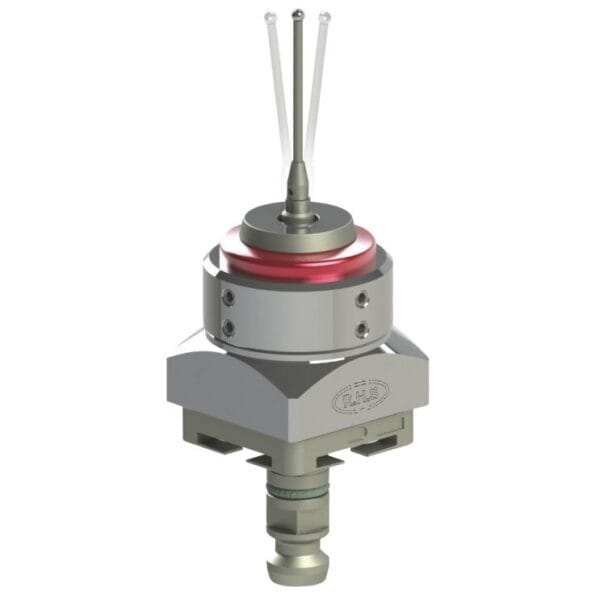

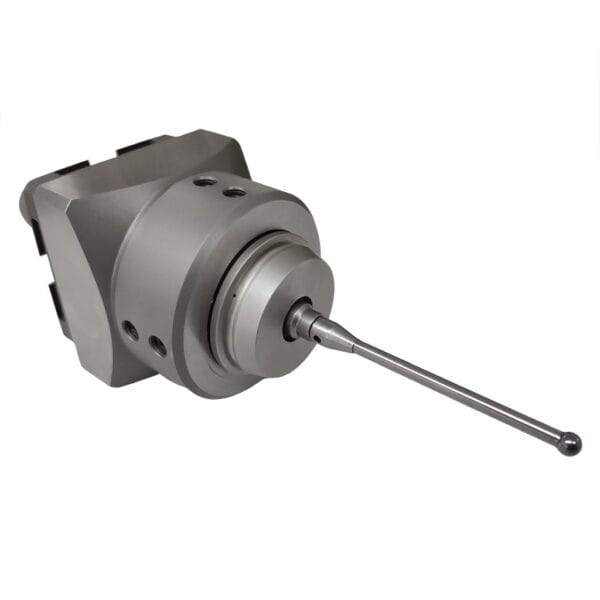

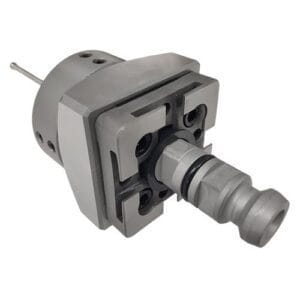

System 3R 3R-656.21-SP03 centering sensor 4mm tip Macro Compatible Spring loaded
$1,150.00
System 3R 3R-656.21-SP03 centering sensor 4mm tip Macro Compatible Spring loaded
System 3R 3R-656.21-SP03 centering sensor Macro Compatible. System 3R 3R-656.21-SP03 centering sensor Compatible Rapid brand Measuring probe with measuring head for machines with measurement cycle function. 3R-656.21-SP03 centering sensor. Tip or Ball diameter is 4mm.
RHS centering sensor probe applies to measure x,y,z-axis specification of workpiece. It is a measuring probe with Renishaw measuring head for machine with measurement cycle function. Available in 3mm, 4mm, 5mm, 6mm, 8mm diameter Ball probe.
- Description
- Additional information
- Reviews (1)
Description
System 3R 3R-656.21-SP03 centering sensor Macro Compatible. System 3R 3R-656.21-SP03 centering sensor Compatible Rapid brand Measuring probe with measuring head for machines with measurement cycle function. 3R-656.21-SP03 centering sensor. Tip or Ball diameter is 4mm.

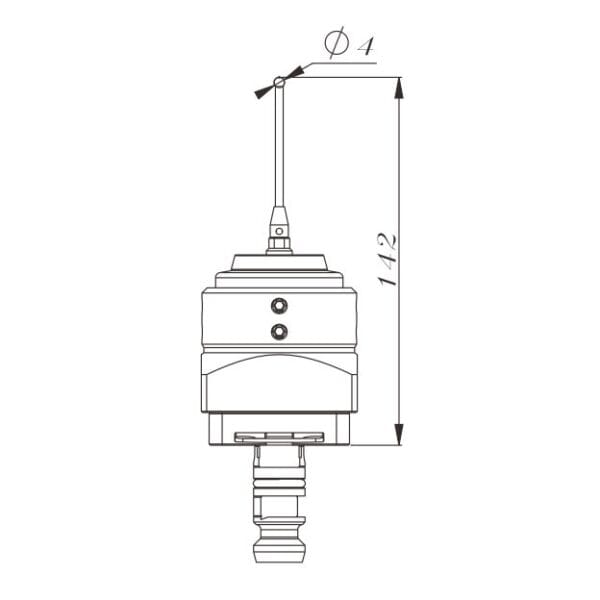

| SPECIFICATION | |
| NAME | Measuring Probe Spring Loaded 4mm tip |
| SIZE | 60X60X142mm |
| MATERIAL | STAINLESS STEEL 420 32-36HRC |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 10 × 10 × 7 cm |
| Ball Diameter (mm) | 4 |
| Deflection Type | 3-Axis Deflecting |
| System Compatibility | System 3R |
1 review for System 3R 3R-656.21-SP03 centering sensor 4mm tip Macro Compatible Spring loaded
Add a review
You must be logged in to post a review.
h ford –
superb quality
