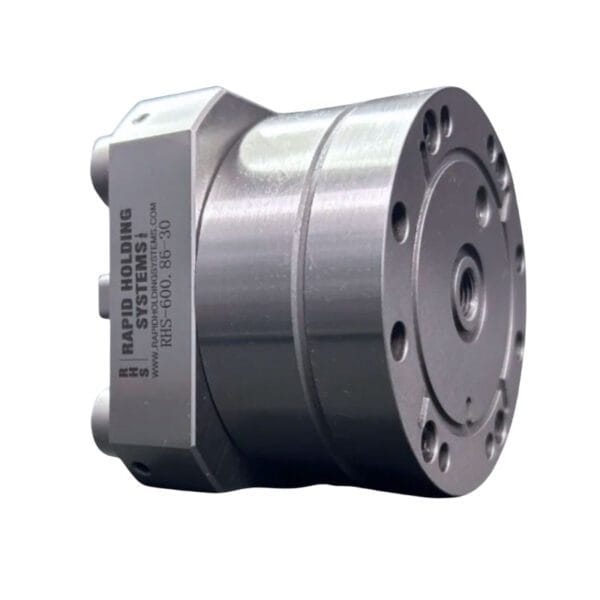

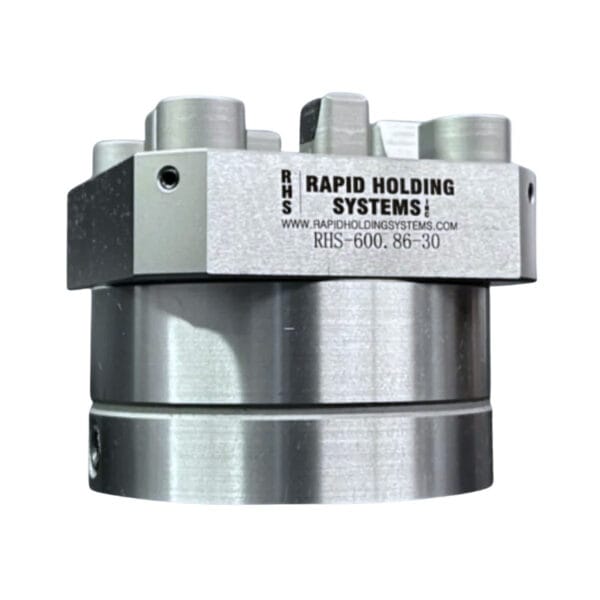

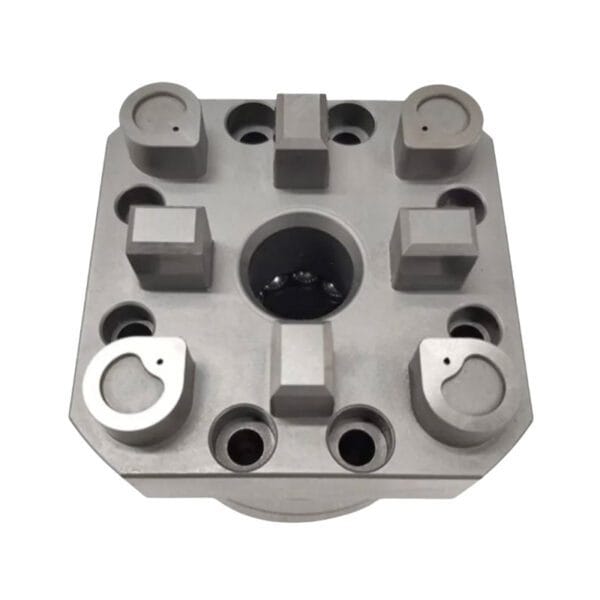

System 3R 3R-600.86-30 compatible Pneumatic chuck square Macro
$2,891.00
System 3R 3R-600.86-30 compatible Pneumatic chuck square Macro
System 3R 3R-600.86-30 compatible Pneumatic chuck square Macro

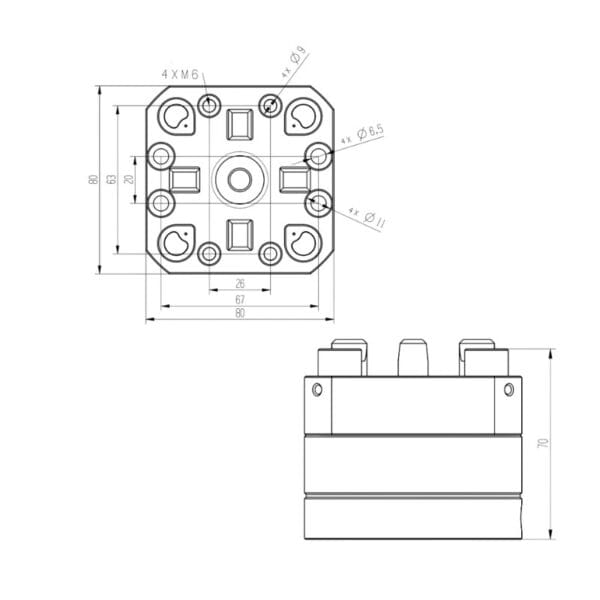

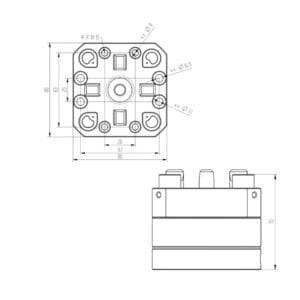

– Four M6 clearance holes, 67×20 mm and four M5
clearance holes, 63×26 mm
– Required air pressure 6±1 bar
– Fixed index positions 4×90°
– Air blast cleaning of the Z-references
– Flushing connection
- Description
- Additional information
- Reviews (0)
Description
System 3R 3R-600.86-30 compatible Pneumatic chuck square Macro
System 3R 3R-600.86-30 compatible Pneumatic chuck square Macro
– Four M6 clearance holes, 67×20 mm and four M5
clearance holes, 63×26 mm
– Required air pressure 6±1 bar
– Fixed index positions 4×90°
– Air blast cleaning of the Z-references
– Flushing connection
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
| Actuation Type | Pneumatic |
| System Compatibility | System 3R MacroStandard |
