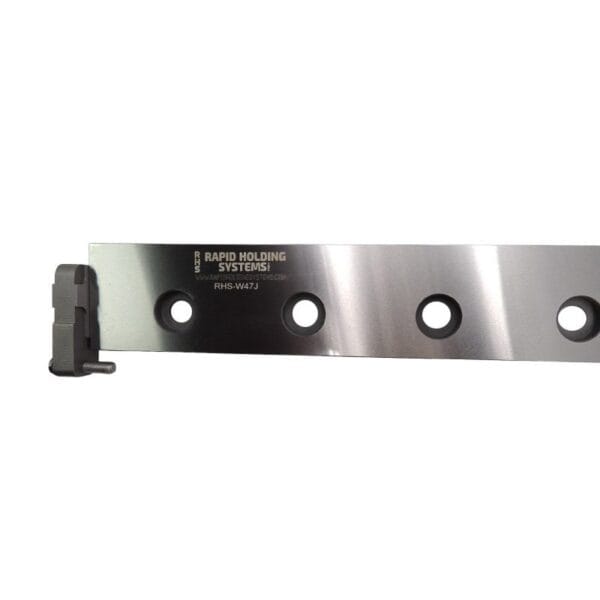

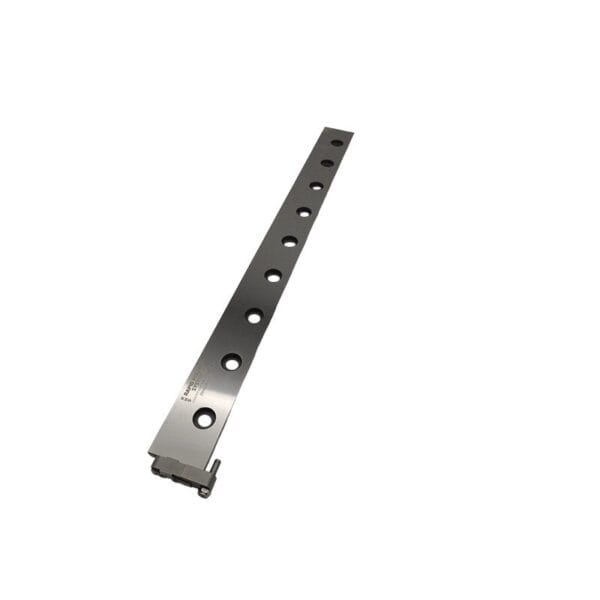

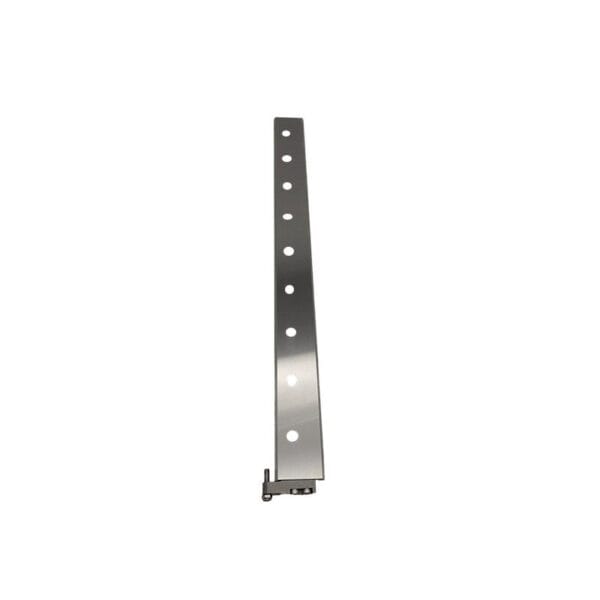

System 3R 3R-200.47J-2 compatible Reference element WEDM 470 mm
$1,085.00
System 3R 3R-200.47J-2 compatible Reference element WEDM 470 mm
3R-200.47J-2 compatible Reference element WEDM 470 mm
Reference elements for machines with zero-line
table. The length (L), hole spacing (C & D) and
hole edge spacing (B) of the hardened reference
elements are matched to the machine in guestion.
– Note: When ordering, state machine make and
type.

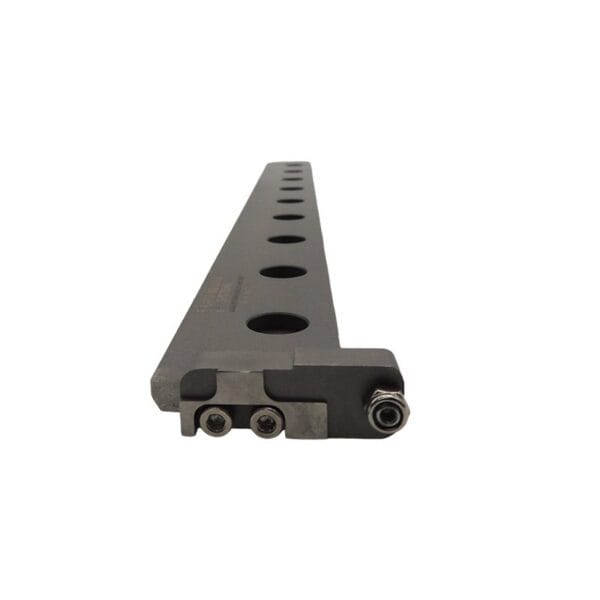

– Supplied with end stops.
L=470 mm, C & D=50 mm, B=16.76 mm
- Description
- Additional information
- Reviews (0)
Description
System 3R 3R-200.47J-2 compatible Reference element WEDM 470 mm
3R-200.47J-2 compatible Reference element WEDM 470 mm
Reference elements for machines with zero-line
table. The length (L), hole spacing (C & D) and
hole edge spacing (B) of the hardened reference
elements are matched to the machine in guestion.
– Note: When ordering, state machine make and
type.
– Supplied with end stops.
L=470 mm, C & D=50 mm, B=16.76 mm
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 65 × 7 × 7 cm |
| WEDM Machine | Acutex 300I, Charmilles, Chmer, Fanuc, GF, Makino, Mitsubishi, Seibu, Sodick |
| System Compatibility | System 3R |
| Material | |
| Ref. Element Length (mm) | 470 |
