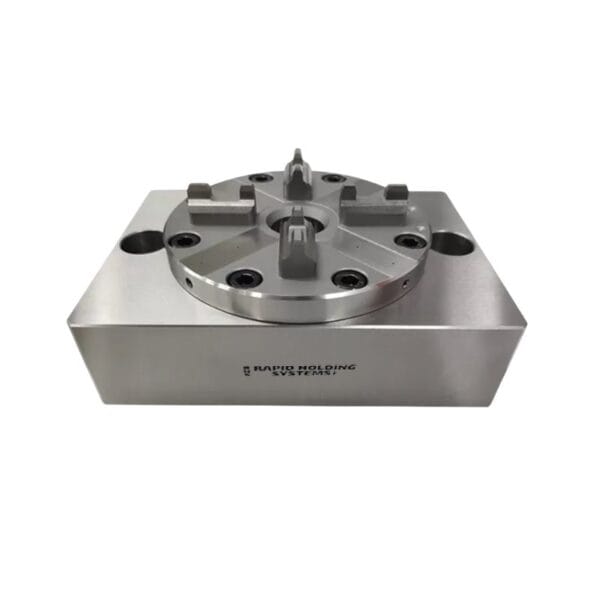

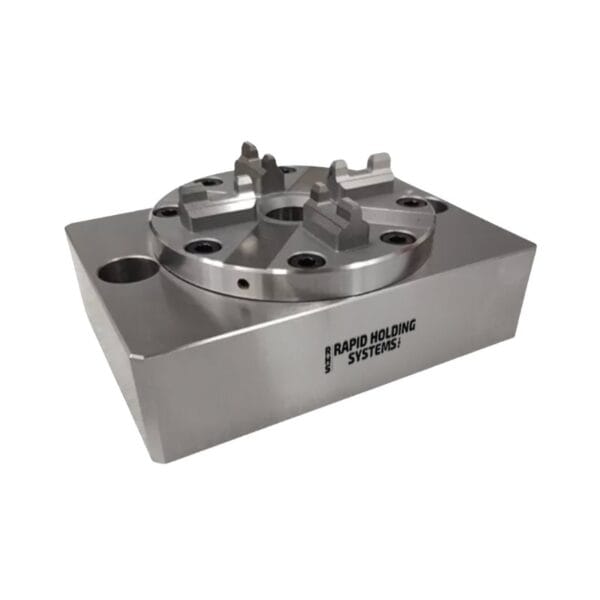

Erowa Optimized ER-043123 Compatible Pneumatic CNC Chuck
$1,295.00

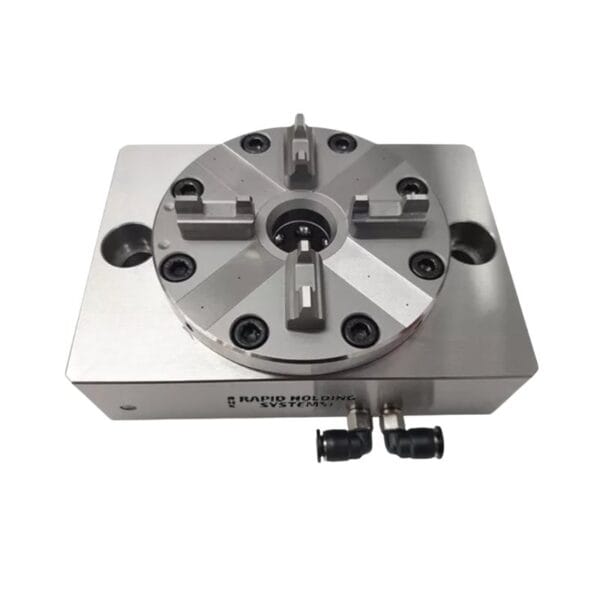

Erowa ER-043123 Compatible Pneumatic Chuck. RHS version Optimized compatible ER-043123 ITS Chuck is 100 INOX integrated into a CNC base plate. 2 air connections on lateral side of chuck, one is for controlling chuck open or close, the other one is for controlling air go through the holes on top surface. Product requires air pressure 6 bar, clamping force is up to 10000N. It applies to accomdate pallet φ115/φ148, electrode holders and milling on CNC lathe.
- Description
- Additional information
- Reviews (0)
Description
Erowa ER-043123 Compatible Pneumatic Chuck. RHS version Optimized compatible ER-043123 ITS Chuck is 100 INOX integrated into a CNC base plate. 2 air connections on lateral side of chuck, one is for controlling chuck open or close, the other one is for controlling air go through the holes on top surface. Product requires air pressure 6 bar, clamping force is up to 10000N. It applies to accomdate pallet φ115/φ148, electrode holders and milling on CNC lathe.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 10 × 10 × 7 cm |
| Actuation Type | Pneumatic |
| System Compatibility | Erowa ITS |
