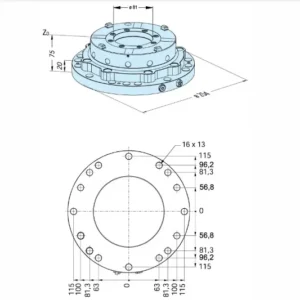

Erowa OEM ER-030479 ProductionChuck 210
Get a Quote
Version
Chuck for high machining forces in chip cutting.
Low design. Through-borehole 81 mm.
Connections
Laterally or from below with two lines.
Operation
With air gun, laterally. With control unit, through
the two connections laterally or from below.
Application
On milling machines, lathes and grinding machines. To clamp pallets PC 210.
- Description
- Additional information
- Reviews (0)
Description
Version
Chuck for high machining forces in chip cutting.
Low design. Through-borehole 81 mm.
Connections
Laterally or from below with two lines.
Operation
With air gun, laterally. With control unit, through
the two connections laterally or from below.
Application
On milling machines, lathes and grinding machines. To clamp pallets PC 210.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 10 × 8 × 8 cm |
