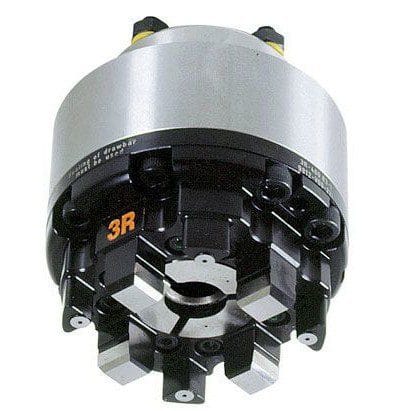

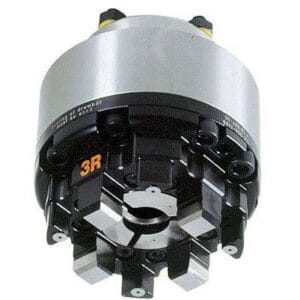

System 3R OEM 3R-460.83-1Pneumatic Combi chuck – round OEM

Description

System 3R OEM 3R-460.83-1Pneumatic Combi chuck – round OEM

System 3R OEM 3R-460.83-1Pneumatic Combi chuck – round OEM
Pneumatic chuck for mounting on the machine
spindle. All X/Y/Z references in hardened and
ground steel.
Note: When ordering state machine make and type.
– Four M6 clearance holes, Ø45 mm
– Drawbar, Macro holder 3R-405.16
– Drawbar, MacroJunior holder 3R-405.11
– Required air pressure 6±1 bar
– Air-blast cleaning of the Z-references
– Flushing connection
– Weight 2.1 kg.
