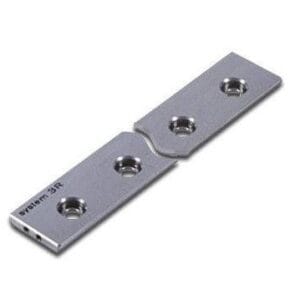

System 3R OEM 3R-200.2J-11 Reference element WEDM 198 mm

Description

System 3R OEM 3R-200.2J-11 Reference element WEDM 198 mm

System 3R OEM 3R-200.2J-11 Reference element WEDM 198 mm for Dovetail with Hardware for Specific Machine Bolt Pattern – 198mm Long

Reference elements for machines with zero-line
table. The length (L), hole spacing (C & D) and
hole edge spacing (B) of the hardened reference
elements are matched to the machine in guestion.
– Note: When ordering, state machine make and
type.
– Supplied with end stops.
L=198 mm, C 25 mm, D=50 mm, B=25.77 mm

System 3R OEM 3R-200.2J-11 Reference element WEDM 198 mm Instructions
